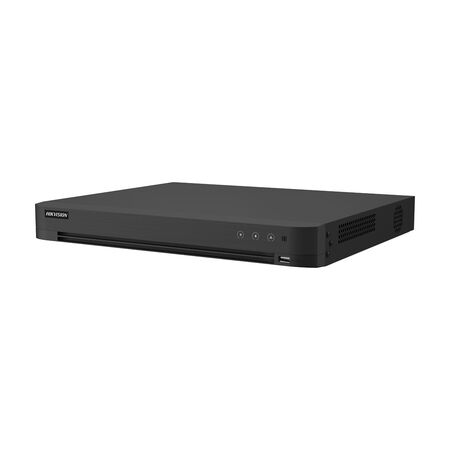

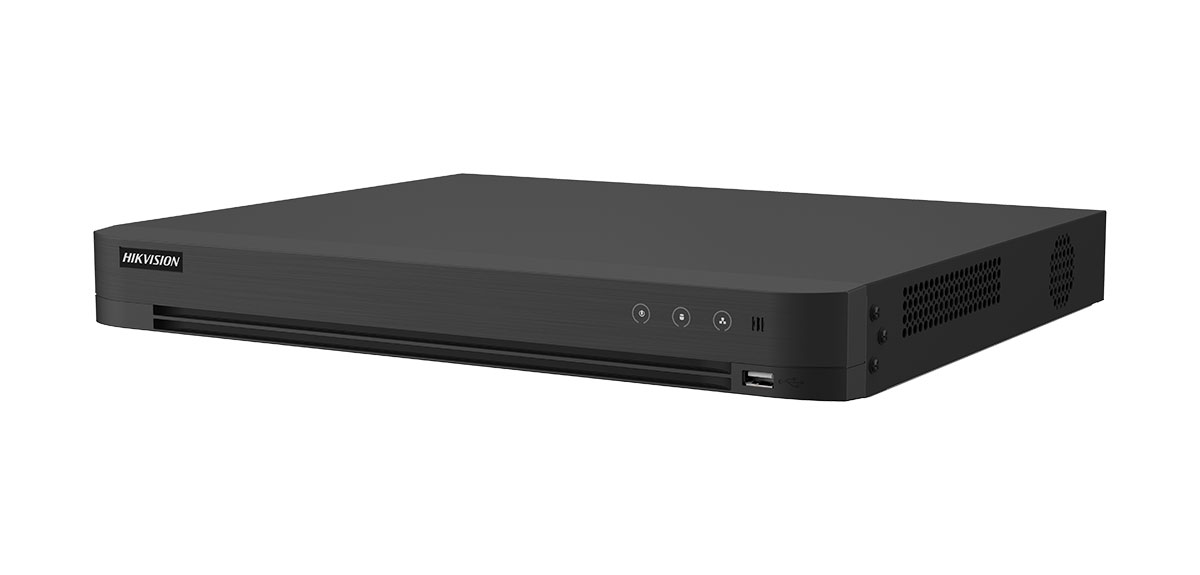

DVR 8 Channel 5MP AcuSense No HDD Hikvision
Hikvision AcuSense DVR features 8 channels, 5MP resolution and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8 Channel 5MP AcuSense DVR, Turbo AcuSense DVR, Hybrid CCTV DVR
Technical Specifications
- Model: iDS-7208HUHI-M1/S
- Channels: 8 analogue video channels
- Recording Resolution: Up to 8MP at 8fps or 5MP at 12fps
- IP Camera Inputs: Up to 16 channels in enhanced IP mode
- Video Inputs: HDTVI, AHD, HDCVI, CVBS and IP
- Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264
- Storage Interface: 1 x SATA interface
- Maximum Storage: Up to 10TB HDD
- HDD: Not supplied
- Network Interface: 10/100/1000 Mbps RJ45 Ethernet
- Video Outputs: HDMI, VGA and CVBS
- USB: 1 x USB 2.0 and 1 x USB 3.0
- Power Supply: 12V DC
- Operating Temperature: -10°C to +55°C
- Humidity: 10% to 90% non-condensing
- Dimensions (H x L x W): 45mm x 315mm x 242mm
- Weight: 2 kg
Key Features
- Eight-channel hybrid DVR for analogue and IP CCTV systems
- Supports 5MP recording at up to 12fps and encoding up to 8MP
- AcuSense deep-learning motion detection classifies humans and vehicles
- Perimeter protection for line-crossing and intrusion events
- H.265 Pro+ compression reduces recording storage requirements
- Supports HDTVI, AHD, HDCVI, CVBS and IP camera signals
- Hik-Connect and DDNS support for remote management
- One internal SATA bay supports HDDs up to 10TB
- Supplied without a hard disk drive for installer-selected storage
Professional Installation Requirements
- Installation, configuration and commissioning should be performed by a suitably qualified CCTV or security-system installer. Where required, installation must comply with applicable state or territory security-industry requirements and AS/NZS 62676 guidance.
Applications
- Residential CCTV systems
- Commercial and retail security installations
- Warehouses, workshops and offices
- Small industrial surveillance systems
- Upgrading existing analogue CCTV systems with AcuSense analytics
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for use in security applications, system requirements general
- AS/NZS 62676.4:2020 - Video surveillance systems for use in security applications, application guidelines
Environmental Benefits
- H.265 Pro+ compression can reduce storage capacity and network bandwidth requirements compared with less efficient codecs
- Reduced storage requirements may lower the energy consumption associated with recording and data retention
- Installer-selected HDD capacity avoids supplying an unwanted storage component and can support longer system service life through replaceable storage
Warranty Information
Hikvision CCTV recording devices supplied through authorised Australian distribution channels are commonly covered by a 3-year back-to-base manufacturer warranty. Confirm warranty eligibility and terms with the original Australian distributor.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional stock availability.
