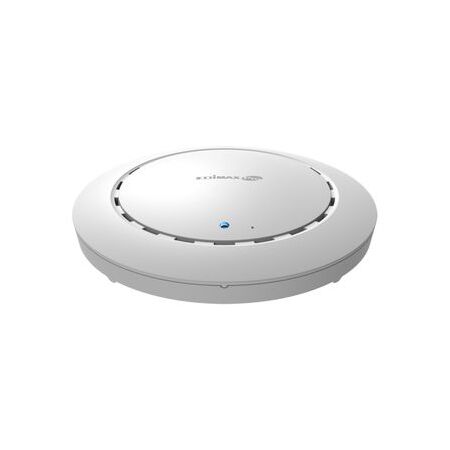

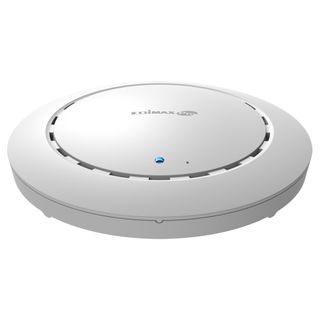

EDIMAX AC1300 Dual-Band Ceiling PoE Access Point Master Certech
EDIMAX AC1300 access point features dual-band WiFi, ceiling mount PoE design and master unit operation. Ideal for office wireless networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EDIMAX CAP1300, CAP1300 Office Wi-Fi System Master Access Point, AC1300 Wave 2 Ceiling PoE AP
Technical Specifications
- Model: CAP1300
- Wireless Standard: IEEE 802.11a/b/g/n/ac Wave 2 concurrent dual-band
- Wireless Throughput: 400 Mbps at 2.4 GHz plus 867 Mbps at 5 GHz
- Wireless Radios: 2 x 2 dual-band radios
- Antenna: 4 x built-in PIFA antennas; 4 dBi at 2.4 GHz and 5 dBi at 5 GHz maximum gain
- LAN Interfaces: 2 x Gigabit Ethernet
- PoE Input: IEEE 802.3af via LAN 1
- DC Input: 12 V DC, 1 A
- Power Consumption: 11 W maximum under full load
- Maximum Clients: Up to 100 concurrent clients per radio
- SSID Capacity: Up to 32 SSIDs; 16 per frequency band
- Security: WEP, WPA, WPA2, wireless isolation and IEEE 802.1X authentication
- Management: Master AP, standalone AP and Edimax Pro Network Management Suite modes
- Master Operation: Manages and communicates with compatible access points in an Office 1-2-3 system
- Operating Temperature: 0°C to 40°C
- Operating Humidity: Up to 90% relative humidity
- Housing: UL94-5VB flame-retardant plastic
- Power Saving: IEEE 802.3az Energy Efficient Ethernet
- Manufacturer Certifications: CE, FCC, NCC, BSMI and IMDA
- Dimensions (H x L x W): 32mm x 176mm x 176mm
- Weight: 0.342 kg
Key Features
- AC1300 Wi-Fi 5 performance across simultaneous 2.4 GHz and 5 GHz bands
- Ceiling-mount design with T-rail mounting compatibility
- Powered by standard IEEE 802.3af Power over Ethernet or 12 V DC adapter
- Master AP operation for managing compatible office access points
- 2 x 2 MU-MIMO, beamforming, band steering and Airtime Fairness
- Built-in RADIUS server supporting up to 256 user accounts
- Supports up to 200 users simultaneously, subject to network conditions
- Centralised management without separate controller software licensing
- Two Gigabit Ethernet ports, including one PoE-enabled port
- Kensington security slot and ceiling or wall mounting holes
Professional Installation Requirements
- Installation should be completed by a competent network installer. Use a compatible IEEE 802.3af PoE switch or injector, install the ceiling bracket securely and configure the wireless network in accordance with applicable Australian electrical, radio and cabling requirements.
Applications
- Small and medium business office Wi-Fi networks
- Office 1-2-3 multi-access-point wireless systems
- Hotels, meeting rooms and commercial premises
- Schools, campuses and training facilities
- Retail, hospitality and reception areas
- Guest, staff and device network segregation
- Ceiling-mounted wireless coverage for high-density indoor environments
Standards & Compliance
- AS/NZS 62368.1:2022 – relevant safety standard for information and communication technology equipment; product-specific CAP1300 declaration was not located in the reviewed documentation
- AS/NZS 4268:2017 with Amendment 1:2021 – relevant Australian radio equipment testing reference; confirm product-specific ACMA and RCM documentation before supply or installation
Environmental Benefits
- IEEE 802.3az Energy Efficient Ethernet reduces energy consumption during periods of low network activity
- PoE operation combines data and power delivery through a single Ethernet cable, reducing separate power cabling requirements
- Durable flame-retardant housing and centralised management can support longer service life and reduce replacement waste
- Low maximum power consumption of 11 W helps limit operating energy demand
Warranty Information
Standard 1-year limited product warranty.
Available Now
Available through Certech and authorised Australian networking equipment distributors, subject to current stock availability.
