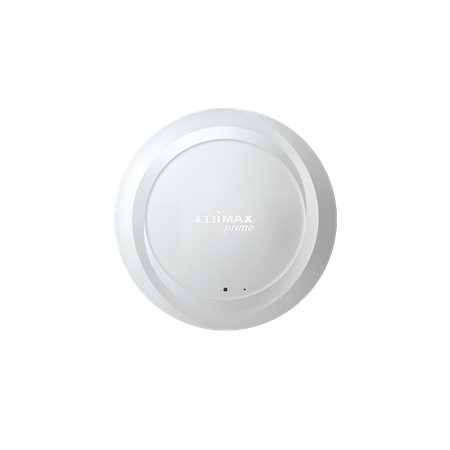

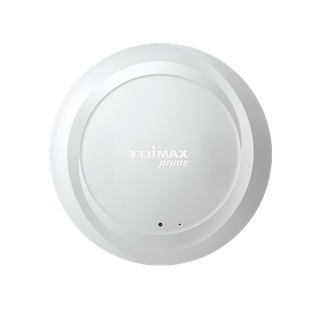

EDIMAX AX1800 WiFi 6 Dual-Band Ceiling PoE Access Point Certech
EDIMAX AX1800 access point features WiFi 6 dual-band operation, ceiling mount design and PoE power. Ideal for high density wireless networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AX1800 Wi-Fi 6 Ceiling Access Point, CAX1800 Wireless Access Point, Edimax Pro CAX1800
Technical Specifications
- Model: CAX1800
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax concurrent dual-band
- Wireless Speed: 574Mbps at 2.4GHz and 1201Mbps at 5GHz
- Frequency Bands: 2.4GHz and 5GHz
- Ethernet Interface: 1 x RJ45 10/100/1000Mbps port
- Power Input: IEEE 802.3af PoE or 12V DC, 1A
- Power Consumption: 12W at full load
- Antenna: 2 x built-in dual-band PIFA antennas
- Antenna Gain: 2.2dBi at 2.4GHz and 2.9dBi at 5GHz maximum
- Concurrent Clients: Up to 128 clients per radio
- SSID Capacity: Up to 16 SSIDs per radio
- Security: WPA3, WPA2-AES, WPA, WEP and IEEE 802.1X
- Management: Standalone AP, Master AP and Managed AP modes
- Fast Roaming: IEEE 802.11r/k supported
- Network Management: HTTP, HTTPS, SNMP, Telnet and SSH
- Operating Temperature: 0°C to 40°C
- Operating Humidity: Up to 90% non-condensing
- Housing Flammability: UL94-5VB
- Included Accessories: Ceiling-mount and T-rail bracket kit, Ethernet cable and quick installation guide
- Dimensions (H x L x W): 32.75mm x 176.29mm x 176.29mm
- Weight: 0.372 kg
Key Features
- Wi-Fi 6 AX1800 dual-band performance
- Combined wireless throughput of up to 1775Mbps
- Gigabit Ethernet with IEEE 802.3af Power over Ethernet
- Designed for ceiling and T-rail mounting
- OFDMA and MU-MIMO improve performance in high-density environments
- Beamforming, band steering and airtime fairness support efficient wireless operation
- IEEE 802.11r/k fast roaming for smoother movement between access points
- WPA3 and WPA2-AES security options
- Built-in RADIUS server with support for up to 256 user accounts
- Edimax NMS support for managing compatible CAX1800 access points
Professional Installation Requirements
- No specialist licensing is generally required for the access point itself. Ceiling mounting and network cabling should be completed by a suitably competent installer, with any mains-powered PoE injector installed in accordance with applicable electrical requirements.
Applications
- High-density office wireless networks
- Schools, campuses and training facilities
- Hotels, resorts and hospitality venues
- Retail stores and commercial premises
- Meeting rooms and shared workspaces
- BYOD and mobile device networks
- IoT and business wireless deployments
- Ceiling-mounted Wi-Fi coverage using PoE network infrastructure
Standards & Compliance
- AS/NZS 4268:2017 Amd 1:2021 — applicable Australian radio equipment standard for Wi-Fi devices; confirm the RCM marking and Australian conformity documentation for the supplied unit.
Environmental Benefits
- 802.3az energy-efficient Ethernet support helps reduce power consumption during lower network activity
- PoE operation can reduce the need for separate local power cabling and power adapters
- Ceiling-mounted commercial design supports longer service life and reduces replacement-related electronic waste
- RoHS-related material restrictions should be confirmed against the specific Australian-supplied unit documentation
Warranty Information
Covered by the Edimax manufacturer's warranty. The specific warranty period for the CAX1800 is not published in the available product documentation; confirm coverage with Certech, in addition to rights under Australian Consumer Law.
Available Now
Available through Certech and authorised Australian network equipment distributors, subject to current distributor stock.
