Electric Mortice Lock LOCKWOOD 3570 | Fire Rated | Satin Chrome Finish | 12-24Vdc | by Dicker Data
The Electric Mortice Lock LOCKWOOD 3570 is designed for commercial security, featuring a fire-rated design and satin chrome finish. With a versatile 12-24Vdc operating voltage and monitored functionality, it’s perfect for access control systems and fire-rated door installations. Built for durability and compliance, this lock ensures safety and reliability in high-security environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock LOCKWOOD 3570 | Fire Rated | Satin Chrome Finish | 12-24Vdc | by Dicker Data
Brand: Dicker Data
SKU: LKW3570ELMOSCPTLC
Alternatively Known As: Electric Mortice Lock, Monitored Mortice Lock, Lockwood 3570 Lock, Commercial Electric Lock
Technical Specifications
- Operating voltage: 12-24Vdc
- Operating current: 500mA max, 80mA holding at 12Vdc; 275mA max, 50mA holding at 24Vdc
- Backset: 60mm (also available in 89mm and 127mm)
- Includes 1.6 metre cable with 12 pin socket
- Reversible for left and right hand doors
- Suits door thickness 32-50mm
- Protection diode for back EMF suppression
- Fire rated with satin chrome finish
- Transfer lead length: 323mm
- Transfer lead max cable diameter: 8mm
- Dimensions (H x L x W): 150mm x 200mm x 60mm
- Weight: 3 kg
Key Features
- Monitored electric mortice lock with dual key override and deadlatching
- Field selectable Fail Safe or Fail Secure function
- Solenoid locking/unlocking of lever handles
- Reversible for left and right hand doors opening in or out
- Includes 1.6 metre cable with 12 pin socket and positive latching plug
- Suitable for door thickness 32-50mm
- Protection diode included for back EMF suppression
- Selectable locking of one or both lever handles without dismantling
- Reed switch located inside housing
- Fire rated with satin chrome finish

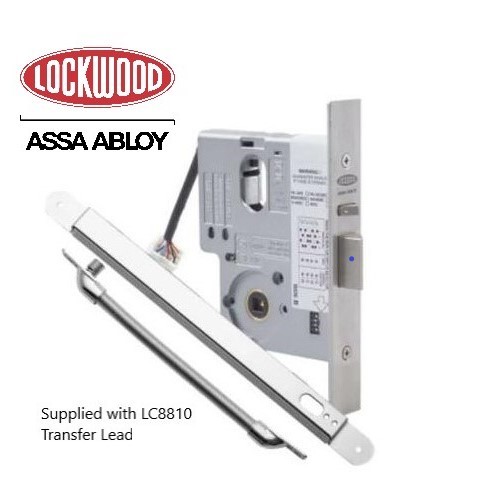

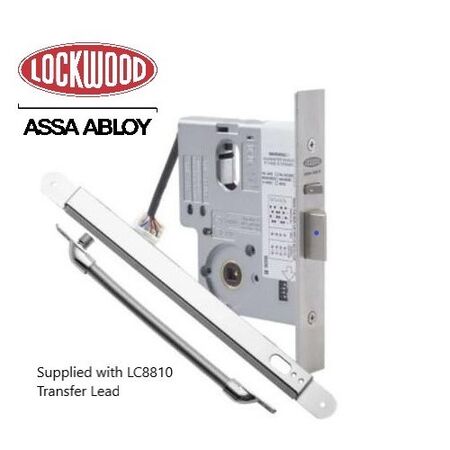

- LWLC8810 transfer lead ensures unbroken wire transfer between door and frame
- Transfer lead fits 90 to 120 degree opening doors, concealed when door is shut
- Transfer lead fits timber or aluminium doors, chrome plated finish
- Fire rated 4 hours according to AS1905.1-1997 and BS476: Part 22: 1987
Professional Installation Requirements
- Professional installation by a qualified locksmith or security systems installer is recommended to ensure proper integration and compliance with fire and security standards.
Applications
- Commercial security doors
- Access control systems integration
- Fire-rated door installations
Standards & Compliance
- Conforms with Australian Lock Standard AS4145.2: 1993 Level D3 durability
- Fire rated according to AS1905.1-1997
Environmental Benefits
- Durable design reduces need for frequent replacements
- Fire rated for enhanced safety and compliance
Warranty Information
5 years warranty provided by manufacturer.
Available Now
The LOCKWOOD 3570 Electric Mortice Lock with LWLC8810 Transfer Lead is available for immediate purchase, ideal for commercial security and fire-rated door applications.
