Electric Vehicle Charging Station 7.4 11 22kW Wall Clipsal

BRAND: Clipsal
SKU: SCHEVH5A22N2S
$1,538.40 List price: $1,917.10
+ −
30 Days Return Electricians Unlock Trade Access

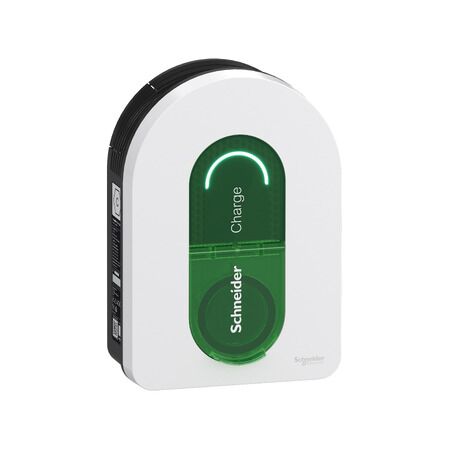

Electric vehicle charging station with 7.4 11 22kW output and wall mounted design—ideal for residential and commercial use from Clipsal.
Technical Specifications
  • Nominal output power: 7.4 kW (32 A), 11 kW (16 A), 22 kW (32 A)
  • Socket outlet type: T2S
  • Rated supply voltage: 230-240 V AC 50-60 Hz, 400 V AC 50-60 Hz
  • Protection type: Earth-leakage protection
  • Communication network type: Wi-Fi, wireless, Ethernet
  • Operating temperature: -30 to 45 °C
  • Storage temperature: -40 to 85 °C
  • Relative humidity: 5 to 95%
  • Dimensions (H x L x W): 352mm x 117mm x 244mm
  • Weight: 3.2 kg
Key Features

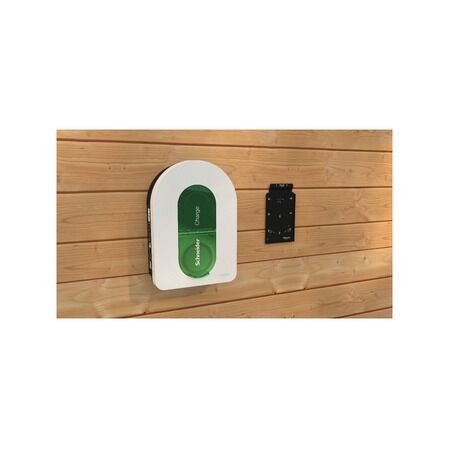

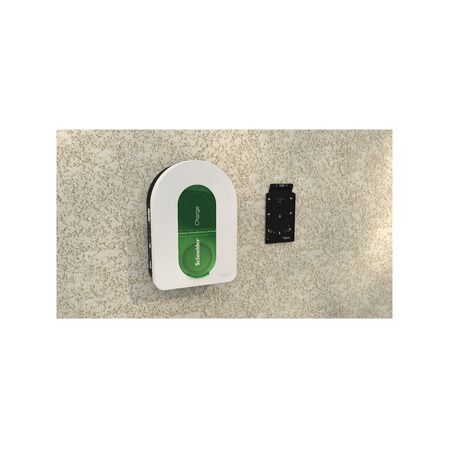

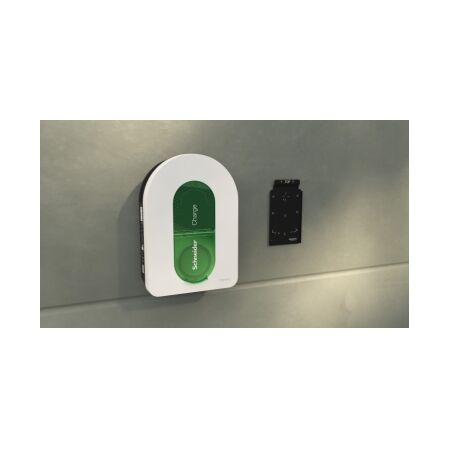

  • Wall-mounted design for easy installation.

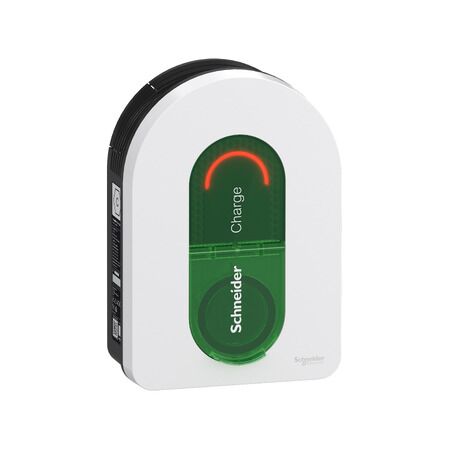

  • Local signalling with red, green, and blue LED for status indication.
  • Earth-leakage protection for enhanced safety.
  • Compatible with OCPP 1.6 for connection to Schneider Electric Wiser app.
  • IP55 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging for electric vehicles
  • Commercial: Public charging stations, fleet charging
Standards & Compliance
  • Complies with EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3
Environmental Benefits
  • Packaging made with recycled cardboard.
  • No single-use plastic in packaging.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Schneider Charge Electric Vehicle Charging Station is available now for immediate purchase. Ideal for residential and commercial applications.

EVH5A22N2S (EVH5A22N2S, 354 Kb) [Download]
