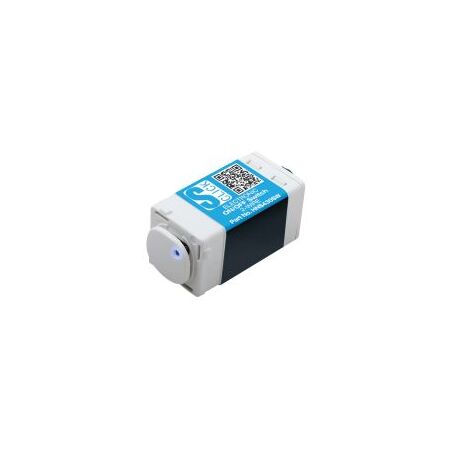

Electronic On Off Switch Mech 2-Wire 240V 1.7A S-Click
Electronic solid-state on/off mechanism with 2-wire wiring, 230-240 V AC operating voltage and 1.7 A maximum current for domestic lighting circuits. Quick-tap operation with blue LED indicator and compatibility with HPM and Clipsal-style wall plates. Supports retrofit installation to most installed lights and multi-way switching with a suitable mains-rated momentary switch. See the full technical specifications and installation requirements below.
Sign in
Please login to continue to your account.
Alternatively Known As: S-Click HNS430SW Electronic Light Switch, 2-Wire Electronic On/Off Mech, Push-Button Light Switch
- Model: HNS430SW
- Switch Type: Electronic solid-state on/off mechanism
- Wiring: 2-wire
- Operating Voltage: 230–240 V AC, 50 Hz
- Maximum Current: 1.7 A
- Maximum Load: 400 VA
- Minimum Load: 10 VA
- Operating Temperature: 0 °C to +50 °C
- LED Indicator: Blue
- Terminals: Screw terminals suitable for 0.5–1.5 mm² stranded conductors
- Wall Plate Compatibility: HPM and Clipsal-style wall plates
- Compliance: CISPR15, AS/NZS 3100 and AS/NZS 60669.2.1
- Dimensions (H x L x W): 24mm x 51mm x 24mm
- Weight: 0.1 kg
- Quick-tap operation for on and off switching
- Blue LED indicates device status
- Soft-touch push-button operation
- Designed for domestic lighting circuits
- Can be retrofitted to most installed lights
- Compatible with HPM and Clipsal-style wall plates
- Includes interchangeable HPM-style and Clipsal-style button covers
- Supports multi-way switching with a suitable mains-rated momentary switch
- Must be installed as part of a fixed-wire electrical installation by a licensed electrical contractor or suitably qualified person. Isolate mains power before installation or lamp replacement; mains voltage may remain present at the load when the switch is off.
- Domestic lighting circuits
- Retrofit lighting control
- Low-load garden lighting
- Suitable low-load heater applications within the published rating
- Residential and light commercial wall-switch installations
- AS/NZS 60669.2.1 for electronic switches for household and similar fixed electrical installations
- AS/NZS 3100 electrical safety requirements for approval and test specification of electrical equipment
- Retrofit design can extend the useful life of existing wall plates and lighting installations, reducing replacement waste
- Solid-state switching has no conventional mechanical switching contacts, supporting long service life when operated within the specified load range
- Suitable for lighting control systems that can help avoid unnecessary lamp operating time
12-month manufacturer warranty from the invoice date against manufacturing and material defects, subject to correct installation, use within specification and installation by a licensed electrical contractor. Australian Consumer Law rights apply.
Available through S-Click/CABAC and authorised Australian electrical distributors, subject to distributor stock.
Q: What is the operating voltage and maximum current of the S-Click switch mech?
A: It has a 230-240 V AC operating voltage and a maximum current of 1.7 A.
Q: Can this switch mech be used for retrofit lighting?
A: Yes, the product is designed for retrofit lighting control and can be retrofitted to most installed lights.
For related lighting control, pair this product with a light switch mechanism suited to the installation.
