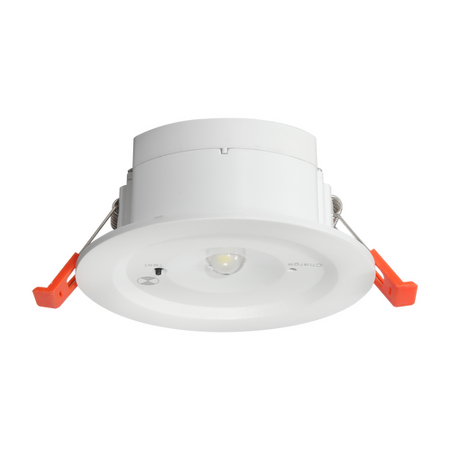

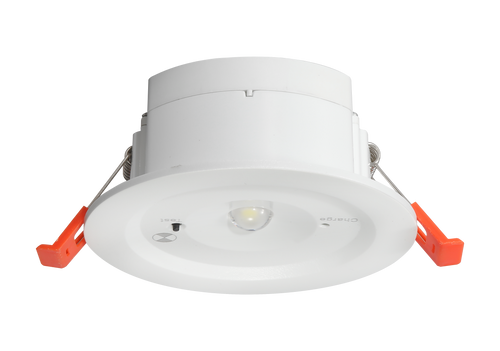

Emergency Downlight | 240V 3W | Recessed Mounting | Tamper Resistant by Lawell Lightning

BRAND: Lawel Lighting

SKU: LWLA2303

$46.30 List price: $60.30

+ −

30 Days Return Delivery Options

Emergency downlight with 240V input and 3W power—ideal for commercial and residential buildings. Built for safety, with recessed mounting and tamper-resistant design for a clean finish.

Description
Attachments

Product Name/Title: Emergency Downlight

Brand: Lawell Lightning

SKU: LWLA2303

Alternatively Known As: emergency LED downlight, emergency recessed downlight, AS2293 emergency light, non-maintained emergency downlight, Lawell emergency light

Technical Specifications

Input Voltage: 240V
Wattage: 3W
Standby Power Consumption: 0.5W
Construction: Polycarbonate body with aluminium heat sink
Mounting: Recessed
Operating Mode: Non Maintained
Operating System: Manual Test Switch
Battery: Lithium 3000mAh LifePO4, 3 hour discharge
AS2293 Classification: C0=D40, C90=D40
Operating Temperature: 1˚C to 40˚C

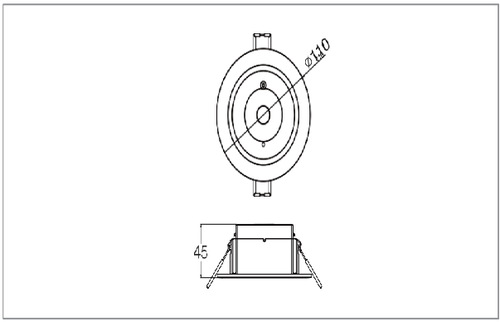

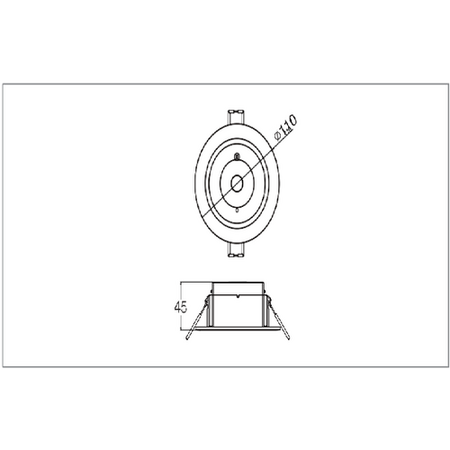

Cut out: 90mm
Dimensions (H x L x W): 58mm x 175mm x 175mm
Weight: 0.45 kg

Key Features

Low 0.5W standby power consumption
D40 spacing classification for optimal coverage
Energy efficient, long life LED
Tamper resistant design – no dome required
Recessed mounting for a clean finish
Manual test switch for easy maintenance

Professional Installation Requirements

Installation must be performed by a licensed electrician to ensure compliance with AS/NZS 2293 and local regulations.

Applications

Commercial buildings: offices, retail, warehouses
Residential complexes: apartments, common areas
Public facilities: schools, hospitals, community centers
Any property requiring compliant emergency lighting for safe evacuation

Standards & Compliance

Complies with AS/NZS 2293 – Emergency Escape Lighting and Exit Signs

Environmental Benefits

Low standby power consumption reduces energy usage
Long-life LED minimizes waste and maintenance
Lithium LifePO4 battery is more environmentally friendly than traditional battery chemistries

Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for commercial, residential, and public buildings requiring compliant emergency lighting solutions.

E2303%20Datasheet.pdf (E2303_Datasheet.pdf, 280 Kb) [Download]
