Enclosed Isolator Switch 4P 63A | IP65 Rated | Padlockable | Grey by NHP
Enclosed isolator switch with 4 poles and 63A rating—ideal for industrial and commercial electrical systems. Built for safety with IP65 protection and padlock locking feature, ensuring reliable operation in demanding environments.
Sign in
Please login to continue to your account.

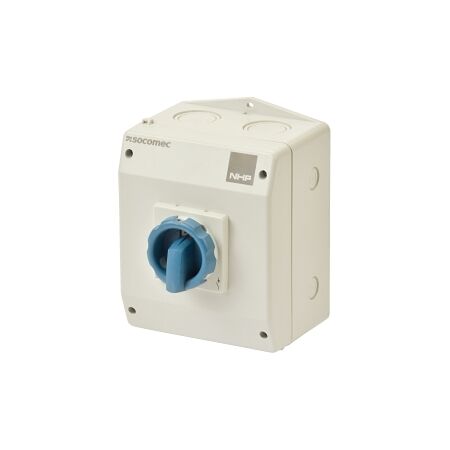

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 4P 63A
Brand: NHP
SKU: ISO463PGS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
- Rated Permanent Current: 63 A
- Number of Poles: 4
- Frequency: 50/60 Hz
- Rated Operation Current: 22 A at AC-23A 690 V
- Rated Short Time Withstand Current: 2.52 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Electrical Connection Type: Screw connection
- Rated Operating Voltage: 690 V
- Auxiliary Contacts: 0 Normally Closed, 0 Normally Open, 0 Change Over
- Motor Drive Integrated: No
- Interlockable: No
- Number of Switches: 1
- Connectable Conductor Cross Section: 2.5-16 mm²
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.62 kg
- IP65 rated for protection against dust and water ingress.
- 4 poles for versatile electrical connections.
- Padlock locking feature for enhanced safety.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Any application requiring a reliable isolator switch
- Complies with relevant Australian standards for electrical safety.
- Durable plastic housing reduces environmental impact.
Standard warranty applies.
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
