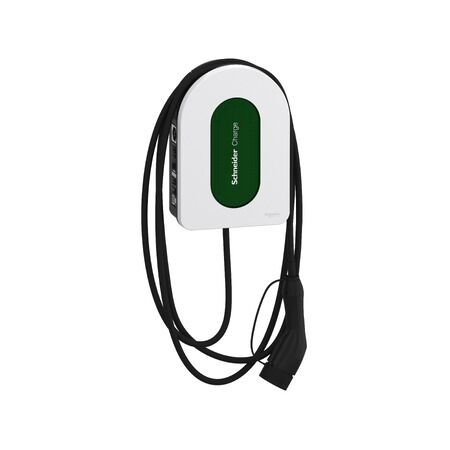

EV Charging Station 11kW 5m Cable Wall Mounted IP55 Clipsal

BRAND: Clipsal
SKU: SCHEVH5A11N2C5
$1,585.20 List price: $1,975.40
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal EV Charging Station Cable Wall Mounted features 11kW, 16A, cable T2 and dry contact for dynamic energy management.
Technical Specifications
  • Nominal output power: 11 kW, 16 A
  • Socket outlet type: cable T2
  • Input type: dry contact for dynamic energy management
  • IP Rating: IP55
  • IK Rating: IK10
  • Communication network type: Wi-Fi, wireless, Ethernet
  • Communication port protocol: OCPP 1.6
  • Operating temperature: -30 to 55 °C
  • Storage temperature: -40 to 85 °C
  • Relative humidity: 5 to 95%
  • Dimensions (H x L x W): 352mm x 117mm x 244mm
  • Weight: 4.4 kg
Key Features

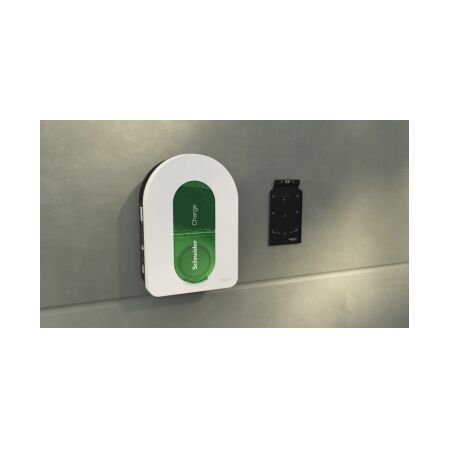

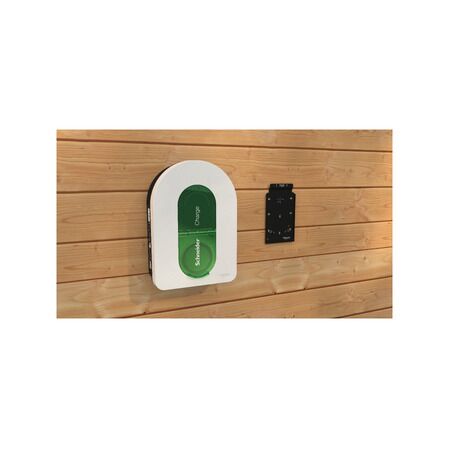

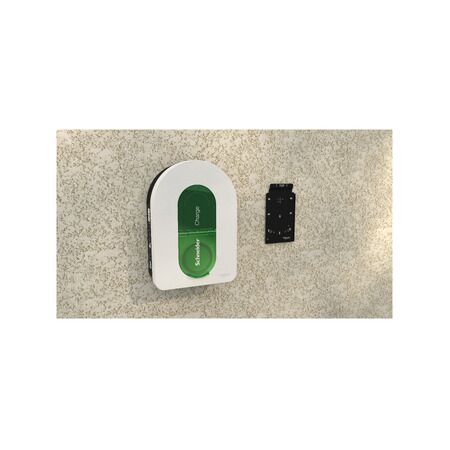

  • Wall-mounted design for easy installation.
  • Attached 5m cable for convenient charging.
  • Local signalling with red, green, and blue LED for status indication.
  • Earth-leakage protection for safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging for electric vehicles
  • Commercial: Public charging stations, fleet charging
Standards & Compliance
  • Complies with EN 61851 and IEC 61851-1 standards.
Environmental Benefits
  • Green Premium product with sustainable packaging.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Schneider Charge 11kW Charging Station with 5m Cable is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging.

FAQ

Q: What charging capacity does this EV charging station provide?
A: It delivers 11kW nominal output power at 16A and includes a 5m attached T2 charging cable.

Q: What connectivity features are included?
A: The charging station supports Wi-Fi, Ethernet, OCPP 1.6 communication, and a dry contact input for dynamic energy management.


Pair this EV charging station with an EV charger pedestal when a free-standing installation is required.
Add an EV charger enclosure to provide additional protection for compatible charging equipment in exposed locations.
Keep a compatible EV charging cable available as a replacement or additional charging accessory.

The three phase EV charger guide explains how to select the right charging solution for residential and commercial installations.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.


EVH5A11N2C5 (EVH5A11N2C5, 204 Kb) [Download]
