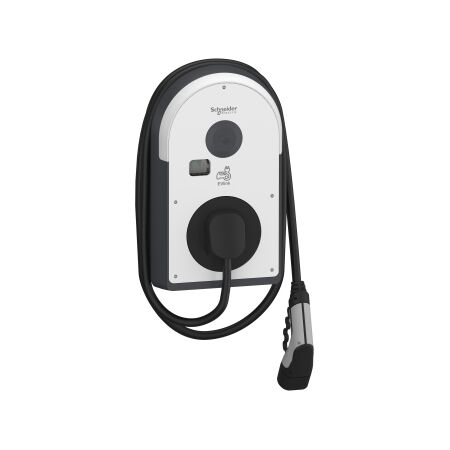

EV Charging Station 22kW 32A T2 Cable MID Meter IP55 Clipsal

BRAND: Clipsal
SKU: SCHEVB3S22NC0M
$2,957.70 List price: $3,685.70
+ −
30 Days Return Electricians Unlock Trade Access
EV charging station with 22kW power and 32A capacity—ideal for residential and commercial use. Built for safety with integrated RDC DD and MID meter from Clipsal.
Technical Specifications
  • Power Output: 22kW
  • Input Voltage: 380-415V AC 50/60Hz
  • Connector Type: T2 attached cable
  • IP Rating: IP55
  • IK Rating: IK10
  • Communication Protocol: OCPP 1.6
  • Operating Temperature: -30 to 50 °C
  • Humidity: 5 to 95%
  • Dimensions (H x L x W): 529mm x 183mm x 317mm
  • Weight: 10 kg
Key Features
  • 22kW charging power with 32A capacity
  • Integrated RDC-DD for safety
  • MID meter for energy monitoring
  • Multiple mounting options: wall-mounted or floor-standing
  • Remote control capability
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging solutions for electric vehicles
  • Commercial: Public charging stations, fleet charging
  • General: Indoor and outdoor electric vehicle charging
Standards & Compliance
  • Complies with EN/IEC 61851-1 and other relevant standards.
Environmental Benefits
  • Complies with environmental standards for energy efficiency.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Clipsal EVlink Pro AC Charging Station is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.

EVB3S22NC0M (EVB3S22NC0M, 243 Kb) [Download]
