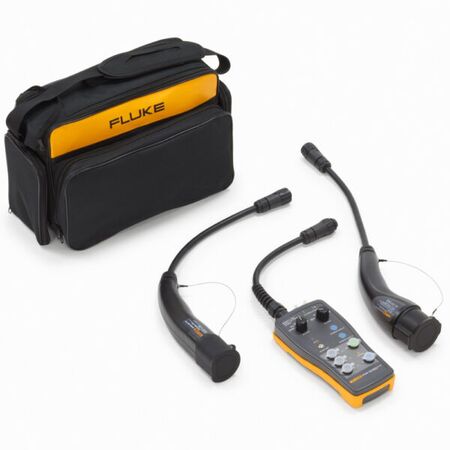

![FEV300 EV Charging Station Test Adapter Fluke Type 1 & 2 Connector Kit [ MET-F-FLK-FEV300/TY1&TY2 ]](https://d35gtgjy55l0bn.cloudfront.net/images/detailed/393/MET-F-FLK-FEV300_TY1TY2-1-WR-600x600.jpg?t=1744751310 "FEV300 EV Charging Station Test Adapter Fluke Type 1 & 2 Connector Kit [ MET-F-FLK-FEV300/TY1&TY2 ]")
EV Charging Station Test Adapter Type 1 & 2 3 AC Volt Safety
Test Mode 3 AC charging stations using a dedicated adapter with both Type 1 (5-pin) and Type 2 (7-pin) connectors for versatile diagnostics. Designed for EV charging station testing and electric vehicle service centres, with overall dimensions of 100mm x 300mm x 200mm (H x L x W). Complies with AS/NZS 3000 for electrical installations and supports reliable charging station verification. Scroll down to review the full testing capabilities, specifications and application details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector Types: Type 1 (5-pin) and Type 2 (7-pin)
- Compatibility: Mode 3 AC charging stations
- Usage: Diagnostics and testing of EV charging stations
- Dimensions (H x L x W): 100mm x 300mm x 200mm
- Weight: 1.0 kg
Key Features
- Designed for testing function and safety of mode 3 AC charging stations.
- Imitates electric vehicle to generate a charge for testing.
- Includes both Type 1 and Type 2 connectors for versatile use.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal testing results.
Applications
- Testing electric vehicle charging stations in residential and commercial settings.
- Diagnostics for electric vehicle service centers.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Supports the transition to electric vehicles by ensuring charging station reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The FEV300 EV Charging Station Test Adapter Kit is available now for immediate purchase. Ideal for electric vehicle service centers and charging station diagnostics.
FAQ
Q: Which connector types are supported by this test adapter?
A: The adapter includes both Type 1 (5-pin) and Type 2 (7-pin) connectors for testing Mode 3 AC charging stations.
Q: What is this test adapter used for?
A: It is designed for diagnostics and testing of Mode 3 AC EV charging stations in residential, commercial and service centre environments.
