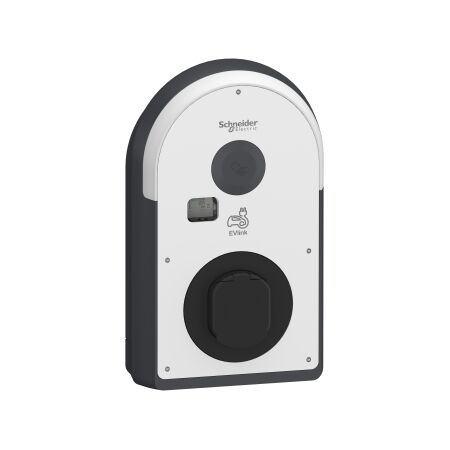

EVlink Pro AC Charging Station 7.4kW 32A T2S Socket IP55 Clipsal

BRAND: Clipsal
SKU: SCHEVB3S07N40M
$2,508.90 List price: $3,126.50
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal EVlink Pro AC Charging Station Socket features 7.4kW, 32A, 220-240V AC, 50 60Hz and IP55. Remote control capability for enhanced user experience.
Technical Specifications
  • Power Output: 7.4kW, 32A
  • Input Voltage: 220-240V AC, 50/60Hz
  • IP Rating: IP55
  • IK Rating: IK10
  • Communication Protocol: OCPP 1.6
  • Integrated MID meter for energy monitoring
  • Operating Temperature: -30 to 50 °C
  • Dimensions (H x L x W): 529mm x 158mm x 317mm
  • Weight: 7.2 kg
Key Features
  • 7.4kW charging power with 32A capacity.
  • Integrated residual direct current detection device (RDC-DD) for safety.
  • Compatible with various EVlink products and EcoStruxure solutions.
  • Remote control capability for enhanced user experience.
  • Multiple mounting options including wall-mounted and floor-standing.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging solutions for electric vehicles
  • Commercial: Public charging stations, fleet charging
  • General: Indoor and outdoor electric vehicle charging
Standards & Compliance
  • Complies with EN/IEC 61851-1 and other relevant standards.
Environmental Benefits
  • Complies with environmental standards and regulations.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Clipsal EVlink Pro AC Charging Station is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.

FAQ

Q: What charging capacity does this EVLink Pro AC charging station provide?
A: It delivers 7.4kW charging power with a 32A T2S socket for residential, commercial and public EV charging applications.

Q: What protection and communication features are included?
A: The charging station features IP55 and IK10 protection, OCPP 1.6 communication and an integrated MID meter for energy monitoring.


Install this charging station on an EV charging station pedestal floor standing aluminum for a professional freestanding installation.
Protect the installation with an EV charging station enclosure IP66 metal pedestal mount in exposed environments.
Integrate an EV load shedder 1P 32A to 100A LED indicators to help manage electrical demand during charging.

Read the commercial EV charger selection guide when choosing charging solutions for residential and commercial projects.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.


EVB3S07N40M (EVB3S07N40M, 224 Kb) [Download]
