Trade Discount 20%

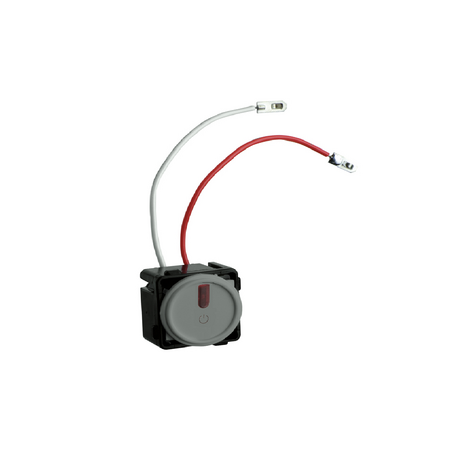

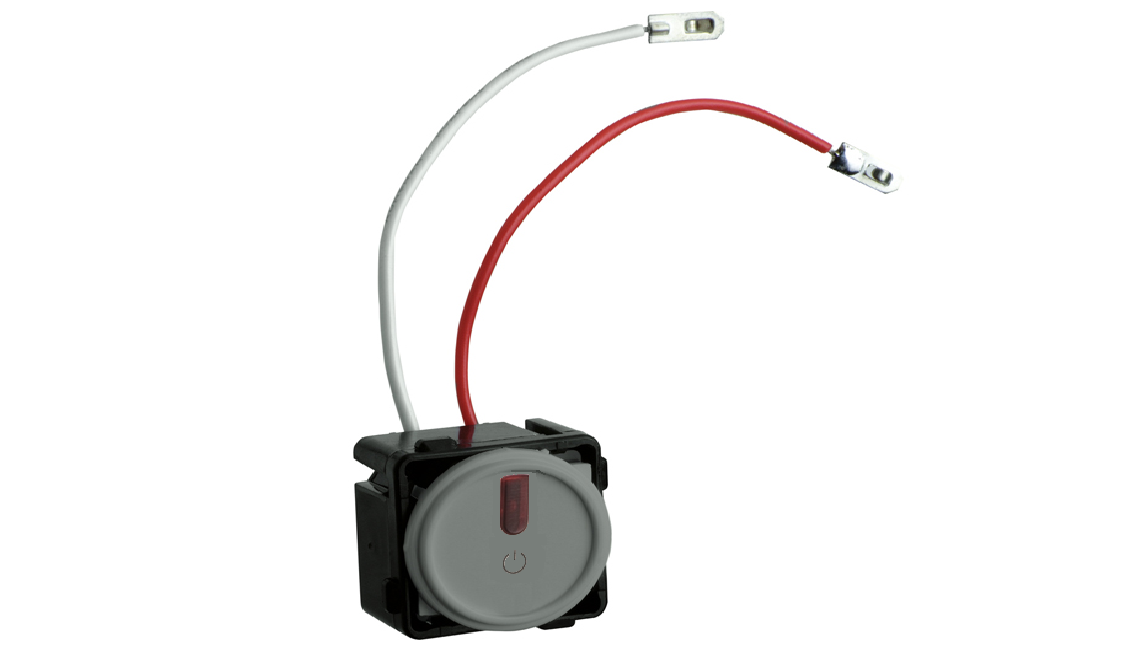

Excel Life Red Power Supplied Indicator 250V AC Legrand
The Excel Life Red Power Supplied Indicator provides power indication for Excel Life socket installations, with a 250V AC voltage and 1.2mA current. It features a red lens, single 77 module size and quick fit lead ends for installation. The indicator measures 50mm x 30mm x 50mm and complies with AS/NZS 3000 Wiring Rules (Electrical Installation). See the technical specifications and application details below before ordering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 250V AC
- Current: 1.2mA
- Colour: Red lens
- Connection: Quick fit lead ends
- Module size: Single 77 module
- Cleaning: Use damp cloth only, no solvents or cleaning agents
- Dimensions (H x L x W): 50mm x 30mm x 50mm
- Weight: 0.1 kg
Key Features
- LED indicator kit with factory marked symbol
- Pre-marked for power supplied to 1 outlet
- Coloured red lens for easy identification
- Lead ends prefitted with ‘quick fit’ connectors for easy installation
- Low current consumption of 1.2mA
- Suitable for Excel Life series sockets
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection to Excel Life sockets.
Applications
- Hospitals and medical facilities
- Factories and workshops
- Temporary building sites
- General power indication for Excel Life socket installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption LED indicator reduces energy use.
- Durable design minimizes waste and replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Excel Life Red Power Supplied Indicator Mechanism is available for immediate purchase, ideal for medical, industrial, and temporary site power indication applications.
FAQ
Q: What voltage and current does the Excel Life Red Power Supplied Indicator use?
A: The indicator has a voltage of 250V AC and a current of 1.2mA.
Q: Where can the Excel Life Red Power Supplied Indicator be used?
A: It is suitable for Excel Life socket installations, including hospitals, medical facilities, factories, workshops and temporary building sites.
Pair the indicator with an Excel Life Switch Mechanism for compatible socket installations.
For double pole switching, the Excel Life Double Pole Switch Mechanism provides a suitable switch mechanism option.
A blue LED indicator is another option with the Excel Life Blue LED Indicator Mechanism for switch installations.
Refer to the switch amp rating guide when reviewing current ratings for switch and socket installations.
