Extended Battery Module 180V | 30 Sealed Lead-Acid Batteries | Rack/Tower Form Factor | 3U Height by Eaton

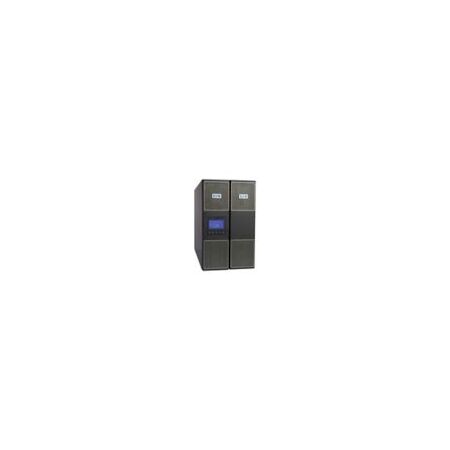

The Eaton 9PX EBM 180V is an extended battery module featuring 30 sealed lead-acid batteries rated at 12V/5Ah, designed for backup power extension with Eaton 9PX 5kVA and 6kVA UPS systems. Ideal for critical applications, it offers a rack/tower form factor and includes essential installation accessories for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extended Battery Module 180V | 30 Sealed Lead-Acid Batteries | Rack/Tower Form Factor | 3U Height by Eaton
Brand: Eaton
SKU: 9000-3086
Alternatively Known As: Eaton 9PX Extended Battery Module, Eaton 9PX EBM 180V, UPS Battery Expansion Module
Technical Specifications
- Battery quantity: 30
- Battery rating: 12 V / 5 Ah
- Battery type: Sealed, lead-acid
- Form factor: Rack/tower
- Rack size: 3U
- Construction type: 482.6 mm (19 inch) device
- Feed type: 2
- Package contents: Extended battery module (EBM), EBM power cable, EBM detection cable, link plate, quickstart guide, safety instructions
- Used with: Eaton 9PX 5kVA and 6kVA UPS
- Dimensions (H x L x W): 440mm x 130mm x 645mm
- Weight: 68 kg
Key Features
- 180V extended battery module
- Rack/tower form factor, 3U height
- Contains 30 sealed lead-acid batteries rated 12V / 5Ah
- Includes EBM power cable, detection cable, link plate, quickstart guide, and safety instructions
- Designed for use with Eaton 9PX 5kVA and 6kVA UPS models
Professional Installation Requirements
- Professional installation by a qualified electrician or UPS technician is recommended to ensure proper integration and safety.
Applications
- Backup power extension for Eaton 9PX 5kVA UPS
- Backup power extension for Eaton 9PX 6kVA UPS
- Rack or tower UPS battery expansion
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Sealed lead-acid batteries are recyclable and designed for safe disposal
- Extends UPS runtime, reducing the need for additional power sources and minimizing energy waste
Warranty Information
Standard Eaton warranty applies; refer to Eaton's official warranty policy for details.
Available Now
The Eaton 9PX EBM 180V Extended Battery Module is available for immediate purchase, ideal for extending backup power capacity in critical UPS applications.
