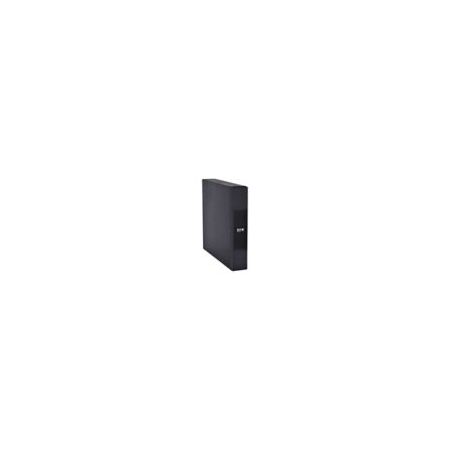

Extended Battery Module for Eaton 5SX UPS | 1.5 kVA Power Rating | Line Interactive | 2U Rack/Tower | Black by Eaton
Extended battery module for Eaton 5SX UPS with a 1.5 kVA power rating and line interactive topology—ideal for data centers and critical IT infrastructure. Built for reliable backup power, it features a compact 2U form factor and humidity tolerance of 0-90% non-condensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Extended Battery Module for Eaton 5SX UPS | 1.5 kVA Power Rating | Line Interactive | 2U Rack/Tower | Black by Eaton
Brand: Eaton
SKU: 9000-1421
Alternatively Known As: Eaton 5SX Extended Battery Module, Eaton 5SX EBM, 5SXEBM48RT2U, UPS Extended Battery Pack
Technical Specifications
- Power Rating: 1.5 kVA / 1.05 kW
- Input: (1) IEC-320-C14 connector
- Output Voltage: 230 V
- Topology: Line interactive
- Humidity Range: 0-90% non-condensing
- Color: Black
- Compliance: FCC Part 15 CISPR22 Class A / FCC Part 15 Class A
- Certification: EN 62040-2:2006
- Dimensions (H x L x W): 208mm x 409mm x 150mm
- Weight: 6.9 kg
Key Features
- Provides extended runtime for Eaton 5SX UPS models
- Line interactive topology
- Input connector: (1) IEC-320-C14
- Output voltage: 230 V
- Compact 2U rack/tower form factor
- Humidity tolerance: 0-90% non-condensing
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with Eaton 5SX UPS systems and safe operation.
Applications
- Extended battery backup for Eaton 5SX1250-XL2UAU and 5SX1750-XL2UAU UPS systems
- Data centers and server rooms requiring extended runtime
- Critical IT infrastructure protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Extends UPS runtime reducing the need for additional power sources
- Supports energy-efficient power management by providing reliable backup power
Warranty Information
Standard Eaton warranty applies; typically 2 years limited warranty covering defects in materials and workmanship.
Available Now
The Eaton 5SX 1250/1750VA Extended Battery Module R/T 2U 48VDC is available for immediate purchase, ideal for extending UPS runtime in data centers and critical IT environments.
