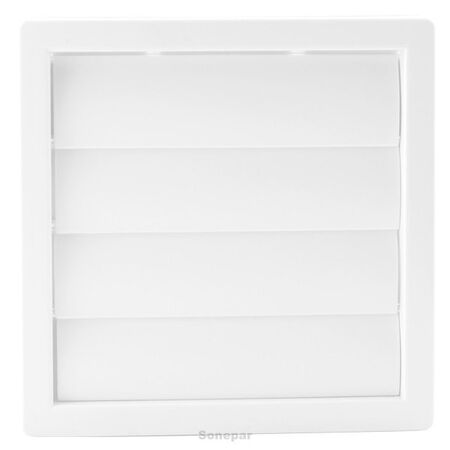

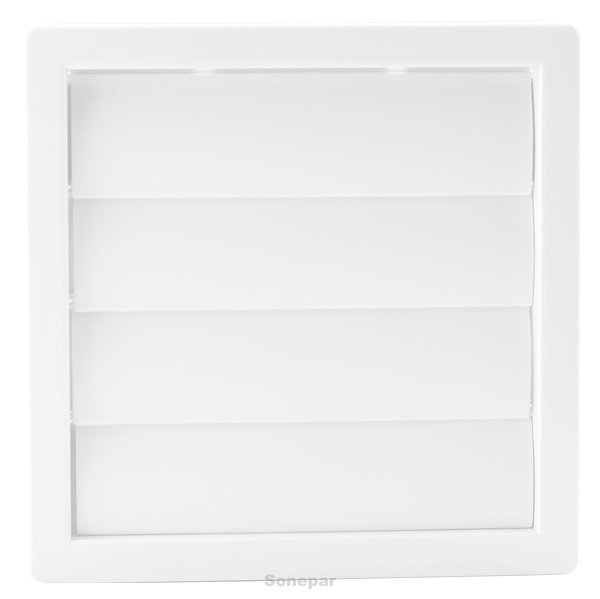

External Grille Gravity Louvre 100mm | UV Resistant PVC | Backdraft Prevention | by Fantech
The External Grille Gravity Louvre 100mm is designed for effective external ventilation in both residential and commercial buildings. Made from impact and UV resistant PVC, it features gravity louvres that close when the fan is off, preventing backdraft and enhancing HVAC efficiency. Ideal for ducting systems requiring a 100mm nominal size, this grille ensures a clean external appearance without screw holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: External Grille Gravity Louvre 100mm | UV Resistant PVC | Backdraft Prevention | by Fantech
Brand: Fantech
SKU: PGL100
Alternatively Known As: External Ventilation Grille, Gravity Louvre Vent, Outdoor Air Vent, PVC Vent Grille
Technical Specifications
- Material: Impact and UV resistant PVC
- Nominal duct height: 100mm
- Nominal duct width: 100mm
- Screw holes: No
- With built-in window: No
- With volume control: No
- Dimensions (H x L x W): 120mm x 40mm x 120mm
- Weight: 0.2 kg
Key Features
- Gravity louvres that close when the fan is not operating to prevent backdraft
- Made with impact and UV resistant PVC for durability in harsh outdoor conditions
- Nominal duct size 100mm x 100mm
- No screw holes for a clean external appearance
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper sealing and secure mounting for optimal performance.
Applications
- External ventilation for residential and commercial buildings
- Air movement systems requiring weather-resistant grilles
- Suitable for ducting systems with 100mm nominal duct size
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Prevents energy loss by closing louvres when fan is off, improving HVAC efficiency
- Durable materials reduce need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech External Grille Gravity Louvre 100mm White is available now for immediate purchase. Ideal for external ventilation in residential and commercial air movement systems.
