Trade Discount 17%

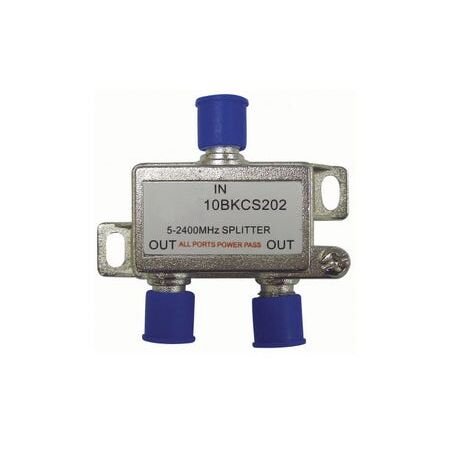

F Type Splitter 2 Way | 5-2400 MHz | High Frequency & Compact Design | Foxtel Approved by Cabac
This 2 way F type splitter operates within a 5-2400 MHz frequency range—ideal for cable TV and satellite installations. Built for reliable signal distribution, with a compact design for easy setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: F Type Splitter 2 Way | 5-2400 MHz | High Frequency | Compact Design by FOXAP
Brand: Cabac
SKU: 05FSPLT2
Alternatively Known As: F Type Splitter, 2 Way F Splitter, TV Antenna Splitter, Foxtel Approved Splitter
Technical Specifications
- Frequency response: 5-2300 MHz
- Impedance: 75 Ohm
- Power pass: 12V DC, 500mA on all ports
- RFI shielding: 120dB
- Housing: Nickel plated zinc die-cast
- Connector type: High precision machine threaded F-ports
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Foxtel Approved
- Nickel plated zinc die-cast housing
- Tongue groove housing design provides high RFI shielding for 120dB
- Frequency response of 5-2300 MHz
- High precision machine threaded F-ports
- Power pass 12V DC, 500mA on all ports
- Impedance: 75 Ohm
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal quality and compliance with local regulations.
Applications
- Allows 2 TVs to share the same antenna
- Suitable for special channels and return channels
- Used in audio/video cable and connectivity setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel plated zinc die-cast housing reduces waste by extending product life
- High precision design minimizes signal loss, reducing the need for additional equipment
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The FOXAP 2 Way 5-2400MHz F Type Splitter by Cabac is available now for immediate purchase. Ideal for residential and commercial TV antenna setups.
