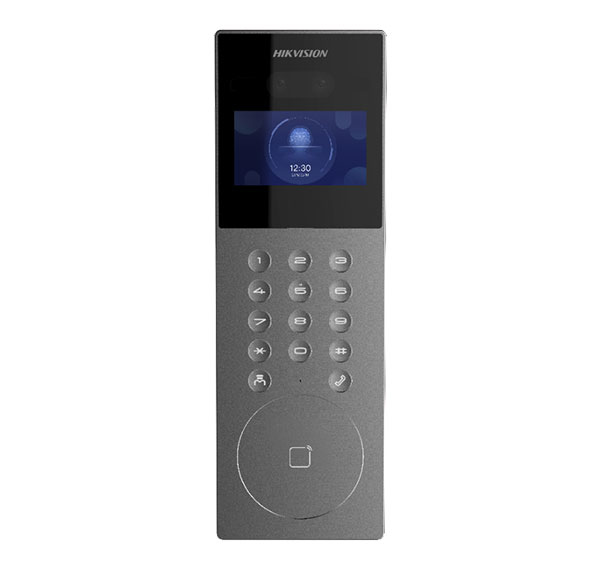

Face Recognition Door Station Hikvision
Hikvision face recognition door station features facial recognition access. Ideal for intercom and access control installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Face Recognition Video Intercom Door Station, IP Face Recognition Door Station, Hikvision KD9 Series Door Station
Technical Specifications
- Display: 4.3-inch colour LCD, 800 x 480 resolution
- Camera: 2 x 2 MP wide-angle HD cameras
- Video Resolution: Up to 1080p at 30 fps
- Face Capacity: Up to 5,000 faces
- Card Capacity: Up to 25,000 Mifare cards
- User Capacity: Up to 10,000 users
- Face Recognition: Anti-spoofing support, recognition distance up to 2 m, recognition time up to 0.2 seconds
- Audio: Two-way audio with built-in microphone and loudspeaker
- Network Interface: 10/100/1000 Mbps self-adaptive Ethernet
- Interfaces: RS-485, alarm inputs, tamper input, door contact and relay outputs
- Unlock Methods: Face, card, PIN, client software or linked indoor station
- Power Supply: 12 VDC, 1.5 A
- Power Consumption: Maximum 13 W
- Ingress Protection: IP65
- Operating Temperature: -30°C to 60°C
- Installation: Flush mounting
- Material: Plastic and glass
- Dimensions (H x L x W): 373mm x 43.7mm x 124mm
- Weight: 0.995 kg
Key Features
- Facial recognition access control with anti-spoofing
- Integrated video intercom functionality
- 4.3-inch colour display for visitor communication and access operation
- Dual 2 MP wide-angle cameras with infrared supplementary lighting
- Built-in Mifare card reader
- Two relay outputs for door lock control
- Remote configuration through web interface
- Suitable for outdoor apartment, office and construction-site entrances
Professional Installation Requirements
- Installation should be performed by a qualified security and access-control installer. Low-voltage electrical work and any connection to mains-powered equipment must comply with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
- Apartment and multi-residential building entrances
- Commercial office access control
- Construction-site entry points
- Video intercom systems
- Outdoor pedestrian door access
- Integrated facial recognition and card access installations
Standards & Compliance
- AS/NZS IEC 60839.11.2:2019 for electronic access control system installation and operation guidance
Environmental Benefits
- Low operating power consumption of up to 13 W
- IP65-rated construction supports longer service life in outdoor installations
- Network video intercom and biometric access can reduce reliance on physical keys and printed access credentials
- Durable access-control hardware can reduce replacement frequency and associated electronic waste
Warranty Information
Hikvision Oceania publishes a five-year warranty for selected premium project-oriented product series; the DS-KD9203-E6 is not listed in that published programme. Confirm the applicable standard Hikvision or authorised-distributor warranty at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and video-intercom distributors.
