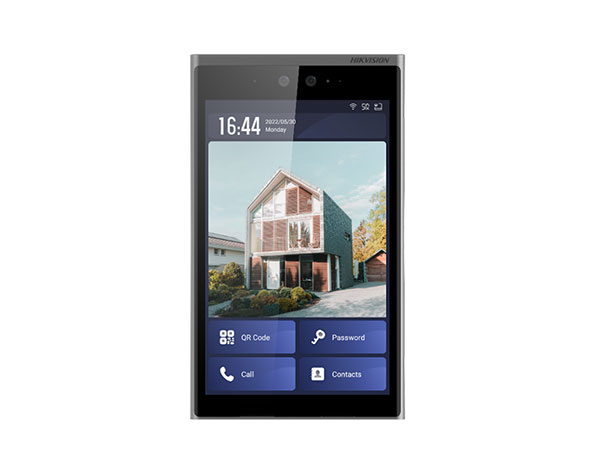

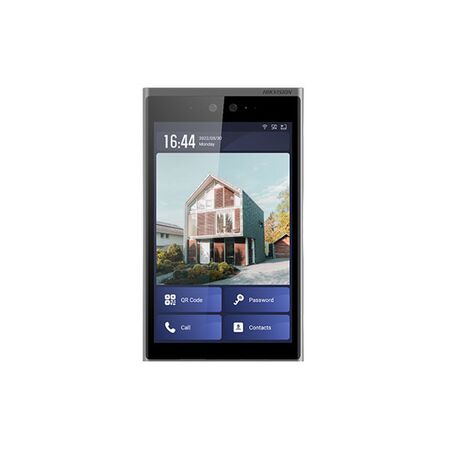

Face Recognition Door Station WiFi Hikvision
Hikvision face recognition door station features face recognition and WiFi connectivity. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Ultra Series Facial Recognition Door Station, IP Face Recognition Door Station, Video Intercom Access Control Door Station
Technical Specifications
- Model: DS-KD9633-WBE6
- Display: 10.1-inch IPS colour touchscreen
- Display Resolution: 1280 x 800
- Camera: Dual 2MP HD cameras with low-light support
- Field of View: 88° horizontal, 44° vertical
- Face Capacity: Up to 10,000 faces
- Card Capacity: Up to 100,000 cards
- User Capacity: Up to 20,000 users
- Linked Indoor Stations: Up to 500
- Sub Door Stations: Up to 16
- Authentication Methods: Face recognition, card, PIN, QR code and Bluetooth; optional modules may support additional methods
- Operating System: Android 7.1
- Memory: 2 GB RAM, 4 GB ROM
- Network Protocols: TCP/IP and RTSP
- Network Interface: 2 x RJ-45 Gigabit Ethernet ports, one reserved
- Wi-Fi: Reserved in the manufacturer datasheet; active Wi-Fi capability should be confirmed for the supplied regional variant
- Lock Control: 2 relays, maximum 30 VDC, 2 A
- Power Supply: 12 VDC, 2 A
- Power Consumption: 18 W maximum
- Protection Rating: IP65 and IK07
- Operating Temperature: -30°C to 60°C
- Installation: Surface or flush mounting
- Application Environment: Outdoor
- Dimensions (H x L x W): 159.2mm x 26.5mm x 271mm
- Weight: 1.225 kg
Key Features
- Face recognition for contactless access control
- 10.1-inch 2.5D curved IPS touchscreen
- Dual 2MP cameras with low-light and IR supplementary lighting
- Supports card, PIN, QR code and Bluetooth authentication
- Built-in two-way audio with noise suppression and echo cancellation
- IP65 weather protection and IK07 impact resistance
- Supports up to 500 linked indoor stations
- Two relay outputs for door-lock control
- Surface-mount and flush-mount installation options
- Aluminium frame with anodised finish
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical contractor. Configure the low-voltage power supply, network, door-lock relays and access-control functions in accordance with the manufacturer's instructions and applicable Australian requirements.
Applications
- Commercial building entry systems
- Apartment and multi-tenant developments
- Office and workplace access control
- Residential security and video intercom installations
- Schools, healthcare facilities and controlled-access sites
- Outdoor pedestrian door and gate access points
Standards & Compliance
- AS/NZS 62676.1.2:2020 – relevant video transmission performance requirements for security applications; confirm project-specific compliance
- AS/NZS IEC 60839.11.1:2019 – relevant electronic access-control system and component requirements; confirm project-specific compliance
Environmental Benefits
- Aluminium construction supports material recovery and recycling at end of service life
- Low-voltage operation and maximum power consumption of 18 W support comparatively efficient continuous operation
- IP65 and IK07 protection can extend service life in exposed installations, reducing replacement waste
- Durable access-control hardware can reduce the need for physical keys, cards and associated consumables
Warranty Information
Warranty is subject to Hikvision Australia product and distribution terms. Australian security distributors commonly list a three-year warranty for Hikvision intercom and access-control products; confirm the exact term and eligibility with the authorised distributor and retain proof of purchase.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to regional model and firmware availability.
