Fast-Acting 4A Buss Fuse | 250 Vac | Glass Tube Construction | Non-Indicating by Eaton
Fast-acting 4A buss fuse designed for electronic circuits, featuring a voltage rating of 250 Vac and glass tube construction. Ideal for quick response to overcurrent situations, ensuring safety and compliance in electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

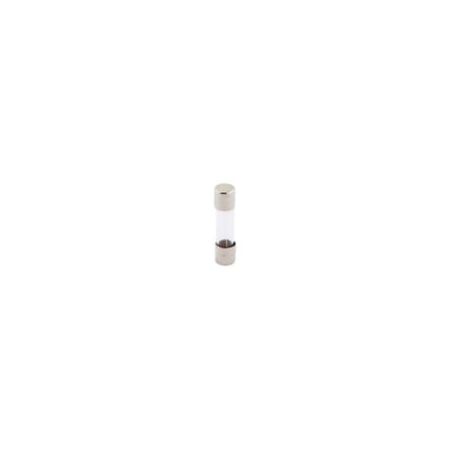

Product Name/Title: Fast-Acting 4A Buss Fuse | 250 Vac | Glass Tube Construction | Non-Indicating by Eaton
Brand: Eaton
SKU: S500-4-R
Alternatively Known As: Bussmann S500 4 Amp Fuse, Fast Acting Fuse 4A, Electronic Fuse 4A
Technical Specifications
- Amperage Rating: 4 A
- Voltage Rating: 250 Vac or less, 32 Vdc (self certified)
- Interrupt Rating: 40 AIC at 250 Vac
- Frequency Rating: 50 Hz
- Voltage Drop: 130 mV maximum
- Fuse Indicator: Non-indicating
- Connection: Ferrule end x ferrule end
- Material: Glass tube with nickel-plated end caps
- Type: Electronic
- Dimensions (H x L x W): 5.2mm x 20.5mm x 5.2mm
- Weight: 0.00067 kg
Key Features
- Fast-acting fuse for quick response to overcurrent
- Glass tube construction with nickel-plated end caps
- Non-indicating fuse type
- Interrupt rating of 40 AIC at 250 Vac
- Voltage drop maximum 130 mV
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fuse selection and safety compliance.
Applications
- Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Warranty details available from Eaton; typically covers manufacturing defects.
Available Now
The Eaton S500 4A Bussmann Fast-Acting Fuse is available now for immediate purchase. Ideal for electronic circuit protection applications.
