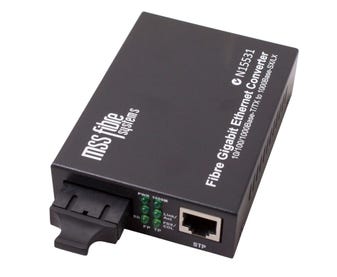

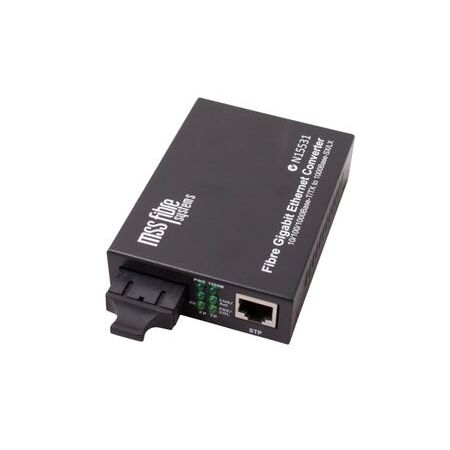

Fiber Ethernet Media Converter | 10/100/1000Mbps | 1300NM Wavelength | 2KM Range by Cabac
This fiber Ethernet media converter supports 10/100/1000Mbps speeds and operates at 1300NM, making it ideal for long-distance data transmission up to 2KM. Built for reliable connectivity, it ensures seamless network integration for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber Ethernet Media Converter | 10/100/1000Mbps | 1300NM | 2KM Range by Unspecified Brand
Brand: Cabac
SKU: FC-1000MSC
Alternatively Known As: Gigabit Media Converter, Fiber Optic Media Converter, 1000Base-TX to 1000Base-LX Converter, SC Fiber Media Converter
Technical Specifications
- Data Rate: 1000Mbps/1Gbps
- Wavelength: 1300nm
- Fiber Type: Multimode
- Maximum Transmission Distance: 2km
- Interface: SC fiber connector
- RJ-45 Port: 10/100/1000BaseT auto-negotiation
- Duplex Mode: Full and half duplex supported
- Switching Architecture: Store-and-forward
- Auto MDI/MDIX crossover detection
- Dimensions (H x L x W): 25mm x 70mm x 100mm
- Weight: 0.2 kg
Key Features
- Automatic identification of MDI/MDI-X cross line
- 10/100/1000MBPS port with full half duplex auto-negotiation
- Back pressure flow control for full duplex
- Converter mode with auto-change forward (switch) function
- Store-and-forward switching architecture
- Auto-MDIX capability on the twisted-pair port
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper fiber optic and electrical connections.
Applications
- LAN
- FTTx
- Telecommunication networks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Supports long distance fiber connections reducing the need for additional network hardware
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac 10/100/1000m Fiber Ethernet 1300NM 2KM MM Media Converter is available now for immediate purchase. Ideal for LAN, FTTx, and telecommunication network applications.
