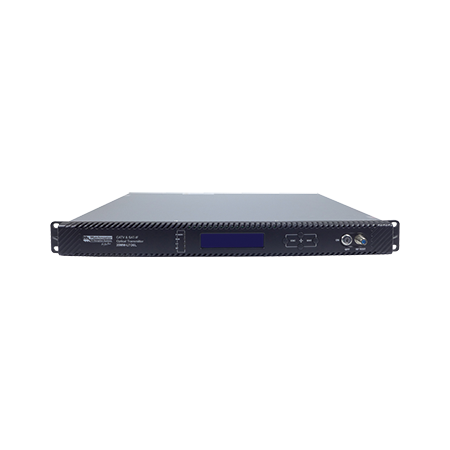

Fibre Transmitter 1550nm +6dBm | 45-2600MHz | Dual Power | 1RU by Matchmaster
Fibre transmitter with 1550nm wavelength and +6dBm output—ideal for telecommunications and broadcasting. Built for reliability, with dual power supplies and 1RU design for standard server racks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Transmitter 1550nm +6dBm 1RU 45-2600MHz with Dual Power Supplies
Brand: Matchmaster
SKU: 20MM-LT06L
Alternatively Known As: Optical Transmitter, Fibre Optic Transmitter, 1550nm Transmitter
Technical Specifications
- Optical Wavelength: 1550-1560nm
- Output Optical Power: +6dBm
- Optical Connector Type: SC/APC
- Working Bandwidth: 45-862MHz (CATV RF), 950-2600MHz (SAT-IF)
- Input Impedance: 75Ω
- Power Supply: 110~265V AC
- Consumption: 20mW
- Working Temperature: 0~50°C
- Storage Temperature: -40~60°C
- Dimensions (H x L x W): 44mm x 395mm x 483mm
- Weight: 3.0 kg
Key Features
- Wide band 45-2600MHz +6dBm optical transmitter
- 1RU 19" rack mountable
- SNMP monitoring and configuration via RS232 or RJ45

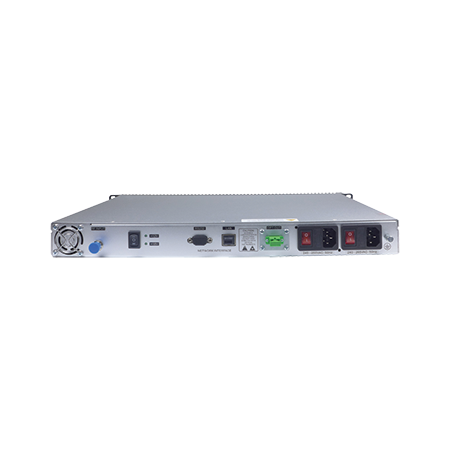

- Built-in power redundancy
- Front LCD panel for setup and fault diagnosis
- Wide input power range with AGC control
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Satellite systems
- SMS systems
- Free-to-air (FTA) systems
- TDT systems
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fibre Transmitter 1550nm +6dBm 1RU 45-2600MHz with Dual Power Supplies is available now for immediate purchase. Ideal for use in various fibre optic applications.
