Fibre Mini Receiver 70dBµV Output | 10-20V DC | Compact Design by Matchmaster
Fibre mini receiver with 70dBµV output and 10-20V DC powering—ideal for home and commercial audio/video distribution. Built for robust signal quality, with compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

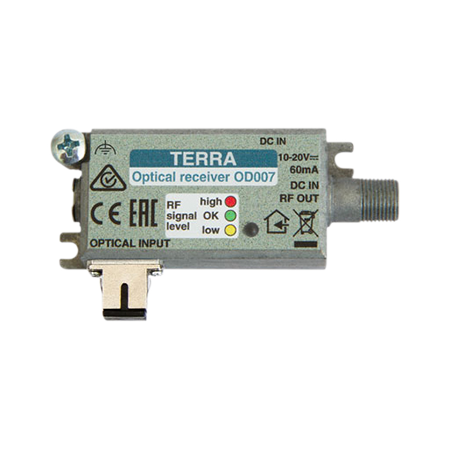

Product Name/Title: TERRA Fibre Mini Receiver (SCA) 70dBµV Output 10-20V DC Powering
Brand: Matchmaster
SKU: 20MM-OD007-SCA
Alternatively Known As: Fibre Optic Receiver, Mini Fibre Receiver, Wideband Fibre Receiver
Technical Specifications
- Optical input wavelength: 1100-1600 nm
- Optical input level AGC range: -15...0 dBm
- Optical return loss: > 40 dB
- Noise current density: ≤ 7.0 pA/√Hz
- RF output frequency range: 47-2400 MHz
- Impedance: 75 Ω
- Return loss: ≥ 14 dB at 40 MHz -1.5 dB/oct.
- Frequency response: ± 1.5 dB
- Output level for 30 SAT IF transponders: 70 dBμV (per transponder); 85 dBμV (total power)
- Supply voltage: 10 V ÷ 20 V
- Current consumption: 60 mA max.
- Operating temperature range: -20° ÷ + 50°C
- Dimensions (H x L x W): 39mm x 19mm x 71mm
- Weight: 0.08 kg
Key Features
- Compact Fibre Optic node with SC/APC interface
- AGC based on RF signal output level
- LED indication of RF signal level
- Operating wavelength of 1100-1600 nm
- DC powered via RF output or DC jack, 10-20VDC
- Operating temperature range of -20°C to +50°C
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Satellite and terrestrial frequency applications
- Pay TV and Free-to-Air (FTA) single-wire systems
Environmental Benefits
- Compact design reduces material usage and waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The TERRA Fibre Mini Receiver (SCA) is available now for immediate purchase. Ideal for satellite and terrestrial frequency applications.
