Fibre Receiver 117dBμV Output | SC/APC Connectors | 47-862/1006MHz by Matchmaster
Fibre receiver with 117dBμV output and SC/APC connectors—ideal for residential and commercial signal reception. Built for robust performance, with a wide frequency range of 47-862/1006MHz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

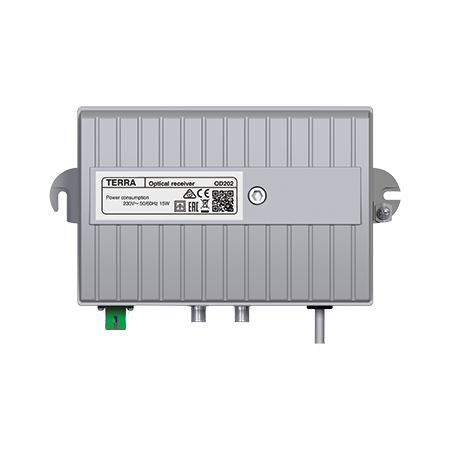

Product Name/Title: TERRA Fibre Receiver 117dBμV Output With SC/APC Connectors 47-862/1006MHz
Brand: Matchmaster
SKU: 20MM-OD202
Alternatively Known As: MATV Optical Receiver, Fibre Optic Receiver, TERRA OD202
Technical Specifications
- Optical Wavelength: 1100nm-1600nm
- Optical Input Level: -9 to +2dBm
- Optical Return Loss: >45dB
- Noise Current Density: ≤6.5 pA/√Hz
- Frequency Range: 47-862 / 1006 MHz
- Impedance: 75Ω
- Return Loss: ≥18 dB to 40 MHz -1.5 dB/oct
- Frequency Response: ± 0.75 dB
- Output Level: 117 dBµV (OLC Controlled, 3.5% OMI)
- Power Consumption: 230 V - 50/60 Hz 15 W
- Operating Temperature Range: -20° ÷ + 50°C
- Dimensions (H x L x W): 76mm x 213mm x 138mm
- Weight: 1.35 kg
Key Features
- 117dBμV output level in auto gain control mode
- Frequency range 47-862MHz or 47-1006MHz selectable
- Optical wavelength 1100-1600nm with an optical input range -9 to +2dBm
- 0-15.5dB attenuation and slope control in 0.5dB steps
- Robust die-cast housing
- SC/APC optical interface
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring robust MATV solutions
Environmental Benefits
- Designed for durability in harsh environments, reducing the need for frequent replacements.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The TERRA Fibre Receiver 117dBμV Output With SC/APC Connectors is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable MATV solutions.
