Trade Discount 16%

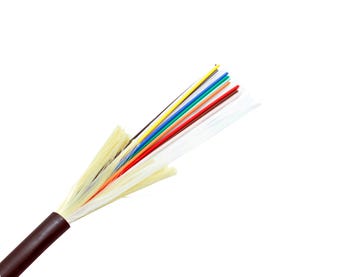

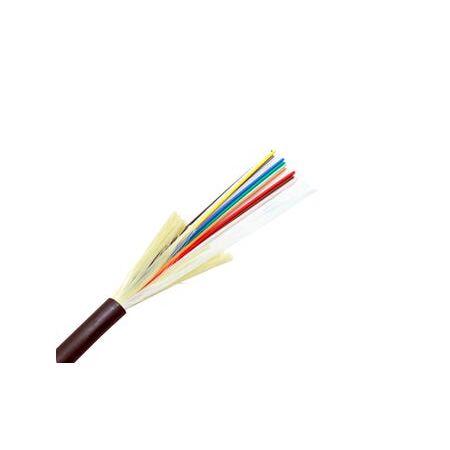

Fibre Optic Cable 12 Core Singlemode | LSZH Jacket | UV Resistant | Indoor/Outdoor Riser by Cabac
Fibre optic cable with 12 core singlemode design, perfect for indoor and outdoor riser applications. Built for high-performance data transmission, featuring a durable LSZH jacket for safety and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Optic Cable 12 Core Singlemode | Indoor/Outdoor Riser | LSZH Jacketed | Black by MSS
Brand: Cabac
SKU: CAB-IOR-12-SM
Alternatively Known As: 12 Core Singlemode Fibre Optic Cable, LSZH Riser Fibre Cable, Indoor Outdoor Fibre Cable, Black LSZH Jacketed Fibre Cable
Technical Specifications
- 12F Indoor/Outdoor Riser Cable SM Black
- 900um PVC tight buffered fibres
- Stranded with aramid yarn
- 'Dry-Block' water-swellable aramid reinforcing and blocking yarns
- Black UV resistant LSZH outer sheath
- Sheath printing includes length marking at 1 meter intervals
- Supports all fibre types including singlemode OS1/OS2
- Options for PVC sheath, NHFR sheath, alternative colours, and up to 96 fibres
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Tough UV resistant LSZH jacket
- Dry-Blocked core with water-swellable aramid reinforcing and blocking yarns
- 900 um tight buffered optical fibre
- Aramid yarn reinforcing
- Flexible and lightweight
- ROHS compliant
Professional Installation Requirements
- Installation should be performed by qualified fibre optic technicians to ensure proper handling and termination.
Applications
- Direct termination methods linking buildings
- Backbone cabling for indoor and outdoor use
- Duct and indoor applications
Standards & Compliance
- Complies with AS/NZS 3080 for telecommunications cabling products
Environmental Benefits
- LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke emissions in case of fire
- ROHS compliant materials ensure reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre 12 Core Singlemode Indoor/Outdoor Riser Black LSZH Jacketed Cable by Cabac is available for immediate purchase, ideal for backbone and building linking applications.
