Fibre Optic Cable 12 Core Singlemode | Mini Loose Tube | UV Stabilised Blue Nylon Jacket by Cabac
Fibre optic cable with 12 core singlemode design and mini loose tube construction—ideal for high-speed data transmission. Built for telecommunications and networking, featuring a durable blue nylon jacket for added protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Optic Cable 12 Core Singlemode | Mini Loose Tube | Blue Nylon Jacket by MSS
Brand: Cabac
SKU: CAB-MLT-12-SM
Alternatively Known As: 12 Core Singlemode Fibre Optic Cable, Mini Loose Tube Fibre Cable, Blue Nylon Jacket Fibre Cable, SM OS2 Fibre Cable
Technical Specifications

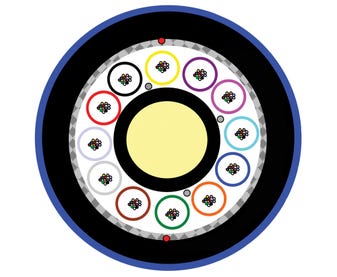

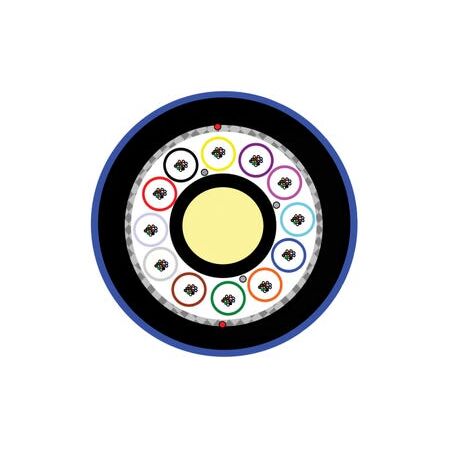

- 12F Loose Tube Cable SM/OS2
- Multi-loose tube construction – Single layer
- Glass fibre reinforced plastic central strength member (GRP)
- Thermoplastic tubes containing up to 12 optical fibres
- Low viscosity, thixotropic, non-melting gel fully compatible with fibre coating
- UV stabilised Nylon sheath compliant with AS 1049 bonded to PE inner sheath
- Blue UV and insect/termite resistant Nylon (Polyamide) jacket
- Black PE (Polyethylene) UV resistant inner sheath
- Polyester based rip cords for easy sheath removal
- Water blocking tape and swellable yarns prevent ingress into the core
- Thixotropic gel filled tubes prevent water ingress
- Non-metallic fibre reinforced plastic rod central strength member provides tensile strength
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Glass fibre reinforced plastic central strength member (GRP) for tensile strength
- Each tube made from thermoplastic material containing up to 12 optical fibres
- Fibres filled with low viscosity, thixotropic, non-melting gel compatible with fibre coating
- UV stabilised blue nylon sheath compliant with AS 1049 bonded to PE inner sheath
- Blue UV and insect/termite resistant nylon (polyamide) jacket
- Black PE (polyethylene) UV resistant inner sheath
- Polyester based rip cords for easy sheath removal
- Water blocking tape and swellable yarns prevent ingress into the core
- Thixotropic gel filled tubes prevent water ingress into the tubes
- Non-metallic fibre reinforced plastic rod central strength member provides tensile strength
Professional Installation Requirements
- Installation should be performed by qualified fibre optic technicians to ensure optimal performance and compliance with industry standards.
Applications
- Telecommunications networks
- Data centers and enterprise networks
- Outdoor and indoor fibre optic installations
- Micro duct installations
Standards & Compliance
- Complies with AS/NZS 3080 – Fibre optic cables and optical fibre cables
Environmental Benefits
- UV stabilised and insect resistant jacket extends cable lifespan reducing waste
- Water blocking and gel-filled tubes prevent damage and reduce need for replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre 12 Core Singlemode Mini Loose Tube Blue Nylon Jacketed Cable by Cabac is available for immediate purchase, ideal for telecommunications and data communication applications.
