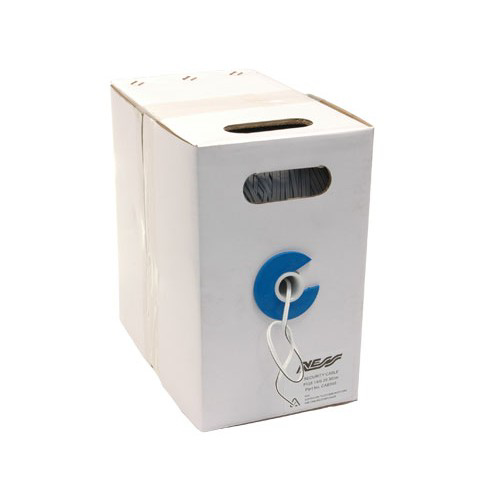

Figure 8 Cable 14/0.20 300m Copper Ness
Ness figure 8 cable features 14/0.20 copper conductors in a durable 300m length. Ideal for speaker and low voltage wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Twin-core figure 8 cable, 14/0.20 security cable, low-voltage speaker cable, parallel webbed cable
Technical Specifications
- Cable Type: Two-core parallel figure 8 cable
- Conductor: Stranded bare copper
- Conductor Stranding: 14 strands of 0.20mm wire
- Nominal Conductor Area: Approximately 0.44mm² per conductor
- Length: 300m boxed length
- Insulation: PVC
- Colour: White, according to the related Ness 100m version
- Intended Voltage: Extra-low-voltage applications; not suitable for mains wiring
- Construction: Thicker stranded figure 8 cable for larger installations
- Approximate Cable Mass: 2kg per 100m; approximately 6kg for 300m before packaging
- Product Identification: Ness CAB341
- Dimensions (H x L x W): 150mm x 300mm x 300mm
- Weight: 6.2 kg
Key Features
- 300m boxed length for larger installations
- Stranded copper conductors provide flexibility during installation
- 14/0.20 construction suitable for common low-voltage wiring requirements
- Parallel figure 8 format allows the conductors to be separated at termination points
- Suitable for speaker, alarm, security, control and other extra-low-voltage applications
- Designed for pulling cable from the centre of the box
Applications
- Speaker and audio wiring
- Security alarm and access-control wiring
- Low-voltage control circuits
- CCTV and camera power connections where cable sizing and voltage drop are suitable
- Air-conditioning control and other extra-low-voltage installations
Standards & Compliance
- AS/NZS 3000:2018 may apply to the installation and segregation of low-voltage wiring; product-specific compliance is not stated by Ness.
- AS/NZS 3008.1.1 may be used for cable selection, current capacity and voltage-drop assessment; this product is not stated as suitable for mains wiring.
Environmental Benefits
- Copper conductors are recyclable at end of service life
- PVC insulation can be separated and processed through appropriate cable-recycling streams
- Durable stranded construction can support longer service life and reduce replacement waste
- The 300m bulk length can reduce packaging and transport per metre compared with multiple short rolls
Warranty Information
Ness Corporation's general warranty policy states a three-year warranty from the date of purchase for Ness-manufactured or supplied products, unless otherwise specified. Product-specific exclusions and conditions apply.
Available Now
Available through Ness Corporation and authorised Australian security, electrical and low-voltage cabling distributors.
