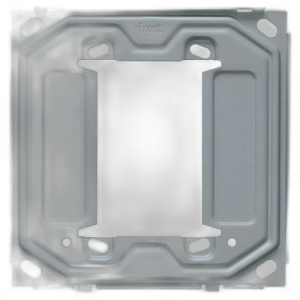

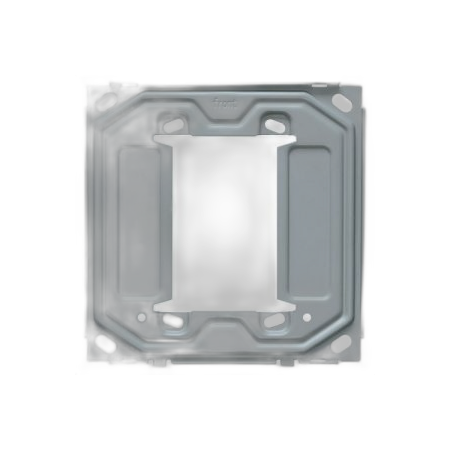

Fixing Frame 3 Module 100x100mm MajorTech
MajorTech fixing frame features three module capacity, 100x100mm grid size and clip in mounting. Ideal for building modular wall plate assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi 3 3-Module Fixing Frame, 100 x 100 mm Modular Fixing Frame, Electrical Wall Plate Fixing Frame
Technical Specifications
- Module Capacity: 3 modules
- Frame Size: 100 x 100 mm
- Material: Powder-coated iron
- Mounting: Clip-in mounting with removable clips
- Compatibility: Standard 100 x 100 mm wall box, including MajorTech V515
- Included Hardware: Self-tapping screws
- Safety Construction: Flame-retardant material added to the frame assembly
- Dimensions (H x L x W): 100mm x 100mm x 15mm
- Weight: 0.12 kg
Key Features
- Three-module capacity for modular wall plate assemblies
- Designed for 100 x 100 mm wall boxes
- Clip-in mounting supports vertical installation
- Removable clips allow installation flexibility
- Powder-coated iron construction for strength and durability
- Supplied with self-tapping screws
Professional Installation Requirements
- Where used as part of a fixed electrical installation, installation and connection of associated modules should be performed by a licensed electrician in accordance with AS/NZS 3000:2018 and applicable local requirements.
Applications
- Building modular switch and socket wall plates
- Residential electrical accessory assemblies
- Commercial electrical fit-outs
- Retrofit installations using compatible 100 x 100 mm wall boxes
- VETi 3 AURA modular switch, socket and communication assemblies
Standards & Compliance
- AS/NZS 3000:2018 applies to the installation of electrical accessories and associated fixed wiring; product-specific certification for this passive fixing frame was not stated.
Environmental Benefits
- Powder-coated iron is durable and can be recycled through suitable metal recycling facilities
- Robust construction may extend service life and reduce replacement waste
- Supplied as a passive mechanical component with no operational energy consumption
Warranty Information
MajorTech lists a 15-year extended warranty for VETi 3 products, subject to the manufacturer’s Australian warranty conditions, registration requirements and exclusions. ([majortech.com.au](https://majortech.com.au/uploads/Warranties_and_Returns_Policy_Australia.pdf))
Available Now
Available through MajorTech and authorised Australian electrical distributors.
