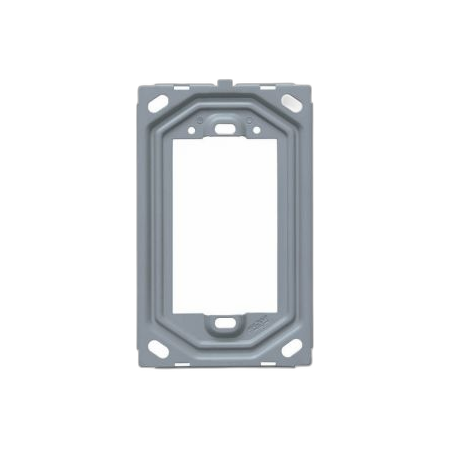

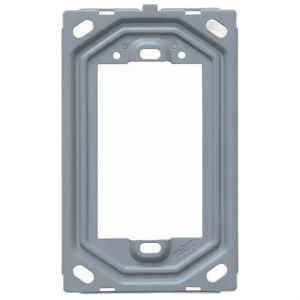

Fixing Frame 3 Module 100x50mm MajorTech
MajorTech fixing frame features three module capacity, 100x50mm grid size and clip in mounting. Ideal for building modular wall plate assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 3 Module Wall Plate Fixing Frame, Modular Switch and Socket Mounting Frame, 100 x 50 mm Electrical Fixing Frame
Technical Specifications
- Module Capacity: 3 modules
- Nominal Frame Size: 100 x 50 mm
- Material: Powder-coated iron
- Mounting: Clip-in modular mounting
- Wall Box Compatibility: Standard 100 x 50 mm wall box
- Installation Accessories: Self-tapper screws supplied
- Frame Clips: Removable from the rear for installation flexibility
- Dimensions (H x L x W): 100mm x 50mm x 5mm
- Weight: 0.1 kg
Key Features
- Designed for three-module VETi 3 AURA switch, socket and accessory assemblies
- Fits standard 100 x 50 mm wall boxes
- Powder-coated iron construction for strength and durability
- Clip-in mounting enables vertical installation without additional fixing frames
- Removable clips allow installation flexibility
- Suitable for retrofit wall plate assemblies
- Supplied with self-tapper screws in a plain polybag
Applications
- Modular wall plate assemblies
- Residential electrical switch and socket installations
- Commercial and light industrial electrical fit-outs
- Retrofit installation into compatible 100 x 50 mm wall boxes
Environmental Benefits
- Iron construction can be recovered and recycled at the end of the product's service life
- Powder-coated finish helps protect the frame against corrosion and extend product lifespan
- Durable construction may reduce replacement frequency and associated material waste
Warranty Information
MajorTech VETi 3 products carry a 15-year extended warranty, subject to the manufacturer's warranty terms, proof of purchase and exclusions for incorrect use, abuse, unauthorised alterations and normal wear.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
