Trade Discount 25%

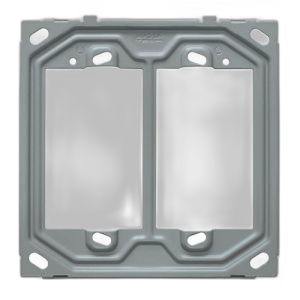

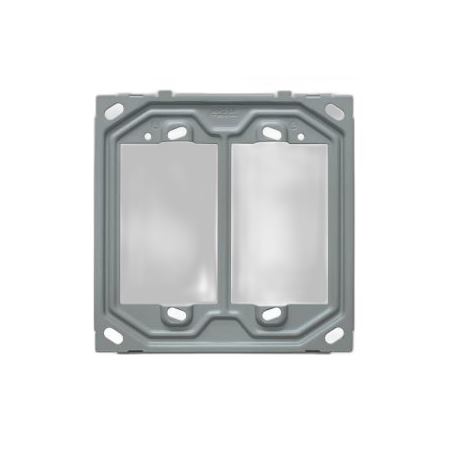

Fixing Frame 6 Module 100x100mm MajorTech
MajorTech fixing frame features six module capacity, 100x100mm grid size and clip in mounting. Ideal for building large modular wall plate assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VETi 3 6-Module Fixing Frame, AURA Modular Fixing Frame, 3VM5026 Fixing Frame
Technical Specifications
- Model: 3VM5026
- Series: VETi 3 AURA
- Module Capacity: Up to 6 single modules
- Grid Size: 100 x 100mm
- Material: Powder-coated iron with flame-retardant material
- Mounting: Clip-in mounting; clips can be removed from the rear
- Compatible Wall Box: V515 100 x 100mm wall box or similar
- Included Accessories: Self-tapper screws
- Dimensions (H x L x W): 100mm x 100mm x 10mm
- Weight: 0.12 kg
Key Features
- Accommodates up to six single modular electrical accessories
- Designed for standard 100 x 100mm wall boxes
- Clip-in mounting simplifies vertical installation
- Removable clips allow configuration flexibility
- Powder-coated iron construction provides strength and durability
- Supplied with self-tapper screws for installation
- Suitable for creating larger modular wall plate assemblies
Professional Installation Requirements
- Installation involving electrical modules or accessories should be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local requirements.
Applications
- Modular switch and socket assemblies
- Residential electrical wall plates
- Commercial and light industrial electrical fit-outs
- Retrofit installations using compatible 100 x 100mm wall boxes
- Building larger modular wall plate assemblies
Environmental Benefits
- Iron construction can be recycled through appropriate metal recycling streams at end of service life
- Durable powder-coated construction can help extend service life and reduce replacement waste
- Flame-retardant material supports safer long-term use in electrical accessory installations
Warranty Information
MajorTech lists a 15-year extended warranty for VETi 3 products, subject to the manufacturer's warranty terms, proof of purchase and applicable exclusions.
Available Now
Available through MajorTech and authorised electrical distributors, subject to distributor stock levels.
