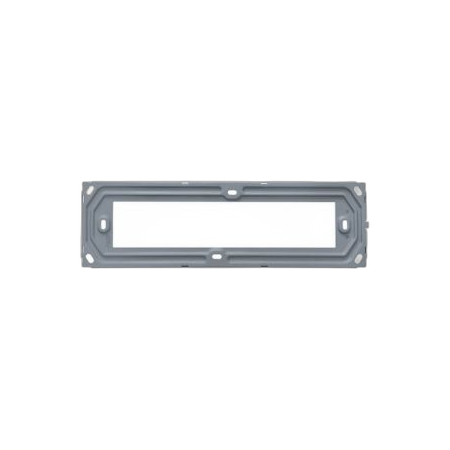

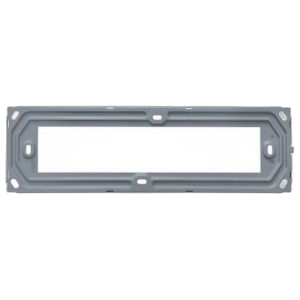

Fixing Frame Omni Cluster 9 Module MajorTech
MajorTech fixing frame features nine module capacity, omni cluster layout and clip in mounting. Ideal for building large modular wall plate assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 9-Module Omni Cluster Frame, Modular Wall Plate Fixing Frame, VETi 3 Fixing Frame
Technical Specifications
- Product Type: 9-module omni-cluster fixing frame
- Material: Powder-coated iron
- Overall Size: 280 x 80 mm
- Mounting: Clip-in module mounting
- Compatible Wall Box: VETi omni-cluster wall box V513
- Included Hardware: Self-tapper screws
- Packaging: Plain polybag
- Dimensions (H x L x W): 80mm x 280mm x 15mm
- Weight: 0.15 kg
Key Features
- Omni-cluster layout for large modular wall plate assemblies
- Accepts compatible VETi 3 modular switches, sockets and accessories
- Clip-in mounting design for fast module installation
- Powder-coated iron construction for strength and durability
- Designed for use with the VETi V513 omni-cluster wall box
- Supplied with self-tapper screws
Professional Installation Requirements
- The frame is a passive mounting component, but installation involving connected electrical modules and mains wiring must be performed by a licensed electrician in accordance with applicable Australian wiring rules.
Applications
- Modular residential wall plate assemblies
- Commercial electrical fit-outs
- Office, kitchen and under-counter power and control installations
- Multi-module switch and socket configurations
- Retrofit and new-build VETi 3 installations
Environmental Benefits
- Powder-coated iron is recyclable at the end of its service life
- Durable metal construction can reduce replacement frequency and installation waste
- Supports modular replacement of individual switches or sockets rather than complete wall plate assemblies
Warranty Information
MajorTech VETi 3 products are covered by a 15-year warranty, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian distributors, subject to distributor stock.
