Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 40mm Diameter | @Each by Wattmaster

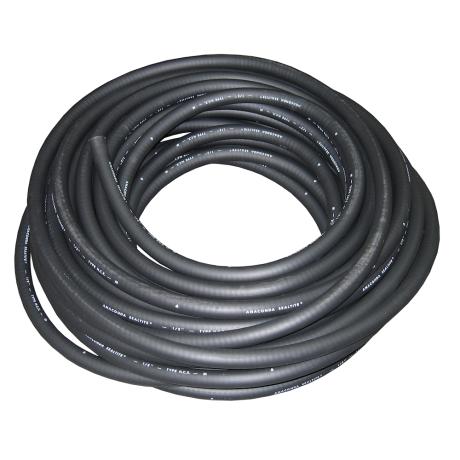

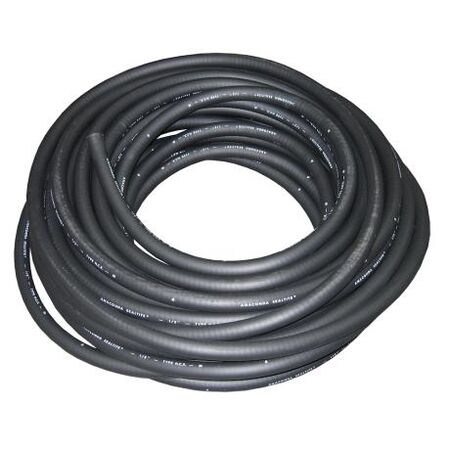

The Flexible Conduit Anaconda HCX is designed for high temperature and liquid tight cable protection, featuring a durable black thermoplastic rubber cover and an IP67 rating when installed with approved connectors. Ideal for both indoor and outdoor applications, this conduit offers crush resistance and corrosion protection, making it perfect for industrial wiring in extreme environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Conduit Anaconda HCX | High Temperature Liquid Tight | IP67 Rated | 40mm Diameter | @Each by Wattmaster
Brand: Wattmaster
SKU: HCX114-15
Alternatively Known As: High Temperature Liquid Tight Flexible Conduit, Anaconda HCX Conduit, Liquid Tight Cable Protection Conduit
Technical Specifications
- Diameter: 40mm
- Length: 15m
- IP Rating: IP67 with approved connectors

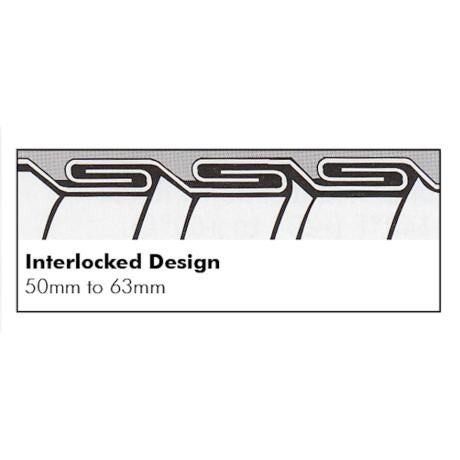

- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride-free
- No copper ground wire included
- Smooth cover with feet markings for easy measurement
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables
- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant black thermoplastic rubber cover

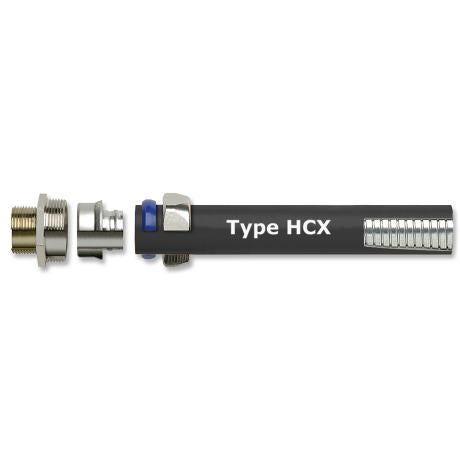

- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with IP67 rating.
Applications
- Indoor and outdoor cable protection in extreme temperature environments
- Industrial wiring requiring dust and liquid tight protection
- Harsh environment electrical installations needing crush and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty details available upon request from Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Flexible Conduit Anaconda HCX High Temperature Liquid Tight 40mm 15m is available for immediate purchase, ideal for industrial and commercial electrical installations requiring high temperature and liquid tight cable protection.
