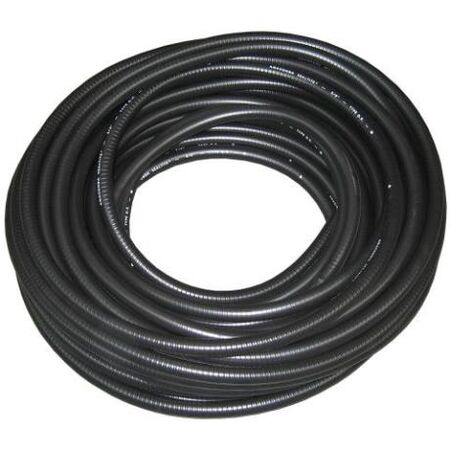

Flexible Metal Conduit 25mm 30m Black Wattmaster
Wattmaster 25mm flexible galvanised steel conduit (30m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 25mm
- Length: 30m
- Core Material: Continuously interlocked hot dipped zinc galvanised steel
- Jacket Material: Thermoplastic PVC with sunlight, heat, oil, and chemical resistance
- Temperature Range: –46°C to +105°C
- Protection Rating: IP67 when installed with approved connectors
- Markings: Length markings in feet on smooth cover
- Dimensions (H x L x W): 25mm x 30000mm x 25mm
- Weight: 3.5 kg
Key Features
- High crush resistance with zinc galvanised steel core
- Temperature range from –46°C to +105°C
- Dust and liquid tight protection with IP67 rating when installed with approved connectors
- Durable thermoplastic PVC jacket resistant to heat, oil, chemical breakdown, and sunlight
- Smooth cover with convenient length markings in feet
- Compatible with standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for liquidtight protection.
Applications
- Protection of electrical cables in harsh industrial environments
- Outdoor and indoor cable routing requiring liquid and dust tight protection
- Use in areas exposed to sunlight, oil, chemicals, and mechanical crush risks
- Suitable for electrical installations requiring flexible, durable conduit solutions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Resistant to corrosion and chemical breakdown, extending product life
- Supports safe and secure cable management, reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit High Crush Resistance Anaconda HCB Liquidtight 25mm x 30m Black is available for immediate purchase, ideal for industrial and commercial electrical cable protection applications.
