Trade Discount 25%

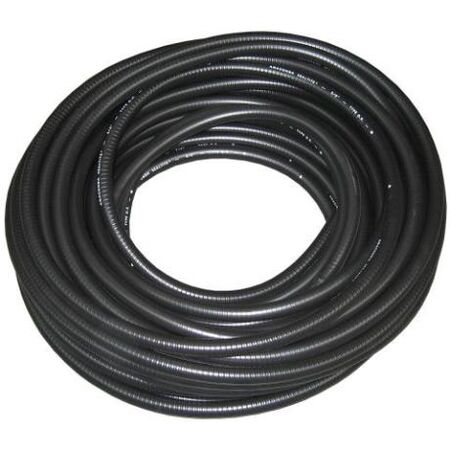

Flexible Metal Conduit 63mm 15m Black Wattmaster
Wattmaster 63mm flexible galvanised steel conduit (15m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 63mm
- Length: 15m
- Core Material: Zinc galvanised steel
- Jacket Material: Thermoplastic PVC
- Temperature Range: –46°C to +105°C
- IP Rating: IP67 with approved connectors
- Resistance: Crush, corrosion, sunlight, heat, oil, and chemical resistant
- Dimensions (H x L x W): 630mm x 15000mm x 630mm
- Weight: 4.5 kg
Key Features
- High crush resistance with zinc galvanised steel core
- Temperature range from –46°C to +105°C
- Durable thermoplastic PVC jacket resistant to heat, oil, chemicals, and sunlight
- Dust and liquid tight protection with IP67 rating when installed with approved connectors
- Smooth cover with convenient length markings in feet
- Compatible with standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquidtight protection.
Applications
- Protection of electrical cables in harsh industrial environments
- Outdoor and indoor cable routing requiring liquid and dust tight protection
- Use in areas exposed to sunlight, oil, chemicals, and mechanical stress
- Suitable for electrical installations requiring waterproof flexible ducting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life in harsh environments
- Protects cables to prevent electrical faults and potential environmental hazards
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects for 1 year.
Available Now
Available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high durability and liquidtight protection.
