Trade Discount 25%

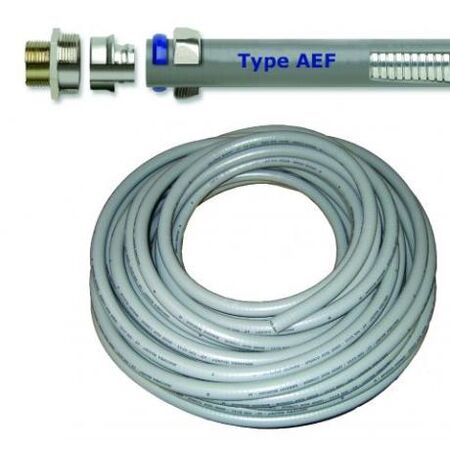

Flexible Metal Conduit Anaconda AEF 20mm 150m Grey Wattmaster
Wattmaster 20mm flexible galvanised steel conduit (150m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 20mm
- Length: 150m
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- IP Rating: IP67 when installed with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 150000mm x 20mm
- Weight: 5.0 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Smooth appearing cover suitable for exposed applications
- Convenient length markings in feet for easy measurement
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C, up to +90°C intermittent
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fitting of liquid-tight connectors.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Exposed conduit runs where UV resistance is necessary
- Use in environments requiring flexible conduit with IP67 protection when fitted with approved connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
- Recyclable galvanised steel core
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years against manufacturing defects.
Available Now
The Wattmaster Anaconda AEF Liquidtight Flexible Metal Conduit 20mm x 150m Grey is available for immediate purchase, ideal for electrical wiring protection in both indoor and outdoor applications.
