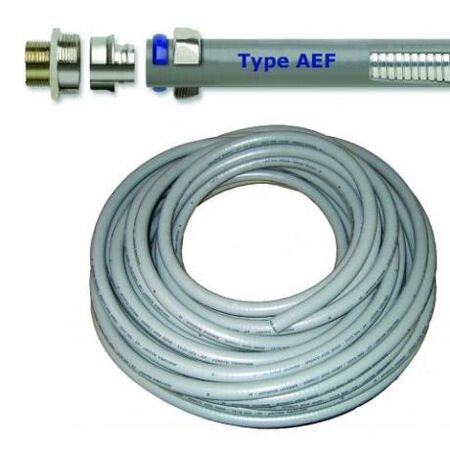

Flexible Metal Conduit Anaconda AEF 20mm 15m Grey Wattmaster
Wattmaster 20mm flexible galvanised steel conduit (15m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- Diameter: 20mm
- Length: 15 meters
- IP Rating: IP67 with approved connectors
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 20mm x 15000mm x 20mm
- Weight: 1.2 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Smooth appearing cover suitable for exposed applications
- Convenient length markings in feet for easy measurement
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C (up to +90°C intermittent)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for liquid-tight applications.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Use in environments exposed to sunlight and moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Anaconda AEF Liquidtight Flexible Metal Conduit 20mm x 15m Grey is available for immediate purchase, ideal for electrical wiring protection in both indoor and outdoor environments.
