Flexible Metal Conduit Anaconda HCX 63mm 15m Grey Wattmaster
Wattmaster 63mm flexible galvanised steel conduit (15m length) features IP67 ingress protection. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 63mm
- Length: 15m
- IP Rating: IP67 with approved connectors
- Core: Continuously interlocked galvanised steel with cord packing
- Cover: Black thermoplastic rubber, sunlight resistant, chloride free
- No copper ground wire included
- Smooth cover with feet markings for easy measurement
- Suitable for extreme temperature environments
- Dimensions (H x L x W): 630mm x 15000mm x 630mm
- Weight: 3.5 kg
Key Features
- Provides cable protection in extreme temperatures, indoors and outdoors
- IP67 rating when installed with approved connectors
- Dust and liquid tight protection of cables

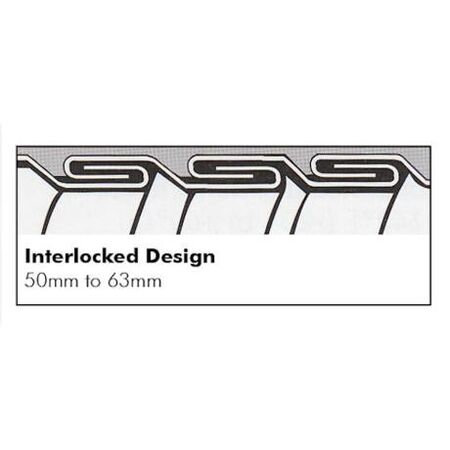

- Continuously interlocked galvanised steel core with cord packing for crush resistance and corrosion protection
- Durable, sunlight resistant, black thermoplastic rubber cover
- Uses standard liquid-tight fittings for easy installation
- Thermoplastic rubber cover contains no chlorides
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with IP67 rating.
Applications
- Industrial cable protection in extreme temperature environments
- Outdoor and indoor wiring protection requiring liquid and dust tight conduit
- Harsh environment electrical installations needing crush and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial and commercial electrical installations requiring high temperature and liquid tight cable protection.
FAQ
Q: What is the diameter and length of this Flexible Conduit Anaconda HCX?
A: This conduit has a 63mm diameter and is supplied in a 15m length.
Q: Is this conduit suitable for harsh industrial environments?
A: Yes, it is designed for high temperature applications and features an interlocked galvanised steel core, liquid tight protection and an IP67 rating when installed with approved connectors.
Pair this installation with a flexible conduit fitting nylon straight for secure conduit terminations in demanding environments.
A flexible conduit clip with plug can help support conduit runs and simplify mounting requirements.

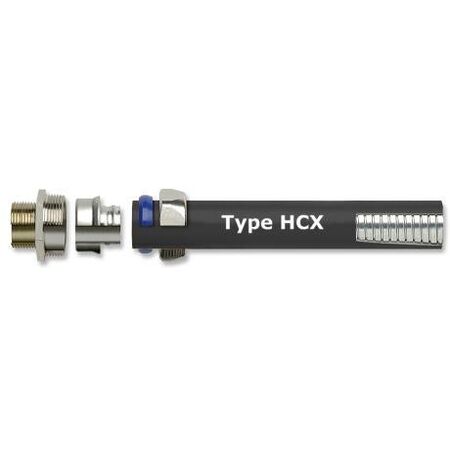

Complete the assembly with a flexible metal conduit fitting when connecting conduit systems to threaded equipment entries.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
