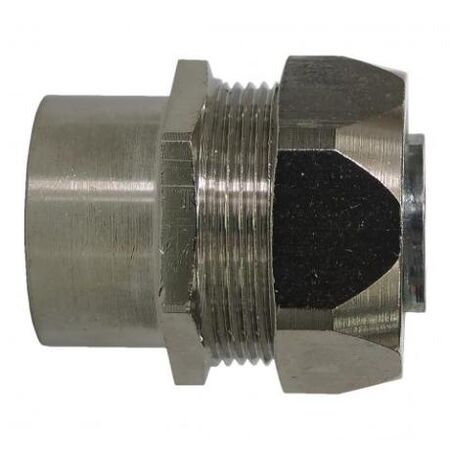

Flexible Metal Conduit Fitting | 3/8" Female Thread M16 | Brass & Nickel Plated | Dust & Liquid-Tight | by Wattmaster
The Flexible Metal Conduit Fitting is designed for reliable connections in electrical conduit installations, featuring a 3/8" female thread M16 and a durable brass body with nickel plating for corrosion resistance. Ideal for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight seal, making it perfect for various applications requiring robust electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting | 3/8" Female Thread M16 | Brass & Nickel Plated | Dust & Liquid-Tight | by Wattmaster
Brand: Wattmaster
SKU: C16/M16-FC
Alternatively Known As: Flexible Metal Conduit Connector, Flexible Conduit Fitting, Metal Conduit Coupling, 3/8" Female Thread Conduit Fitting
Technical Specifications
- Thread Size: 3/8" Female Thread M16
- Inside Diameter: 10.2mm
- Body and Cap Material: Brass, Nickel Plated
- Ferrule Material: Tin Plated Steel
- Inner Seal Material: Polyamide 6
- Throat Insulator Material: Polyamide 6
- Temperature Range: –45°C to +105°C
- Suitable for indoor and outdoor wet corrosive environments
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating and corrosion resistance extend product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 3/8" Female Thread M16 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
