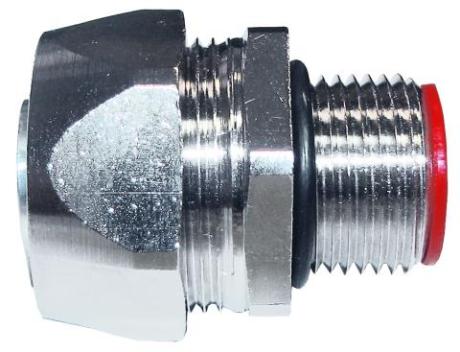

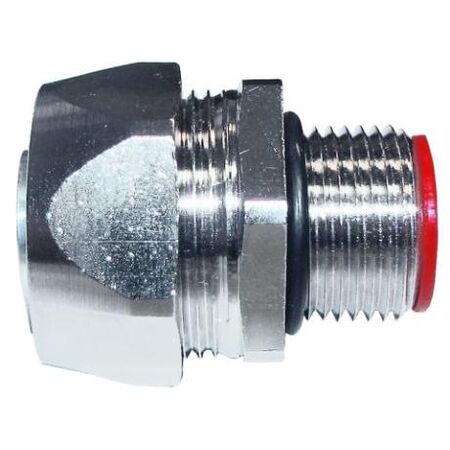

Flexible Metal Conduit Fitting | 3/8" Male Thread M16 | Dust & Liquid-Tight | Corrosion-Resistant Brass | by Wattmaster
The Flexible Metal Conduit Fitting is designed for reliable connections in electrical conduit installations, featuring a 3/8" male thread M16 and a durable brass body with nickel plating. Ideal for both indoor and outdoor wet corrosive environments, this fitting ensures a dust and liquid-tight seal, making it perfect for various applications requiring high durability and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible Metal Conduit Fitting | 3/8" Male Thread M16 | Dust & Liquid-Tight | Corrosion-Resistant Brass | by Wattmaster
Brand: Wattmaster
SKU: C16/M16
Alternatively Known As: Flexible Metal Conduit Connector, FMC Straight Fitting, 3/8 inch Male Thread Conduit Fitting, M16 Flexible Conduit Connector
Technical Specifications
- Thread Size: 3/8" Male Thread M16
- Inside Diameter: 10.2mm
- Material: Brass body and cap with nickel plating
- Ferrule: Tin plated steel
- Inner Seal: Polyamide 6
- Throat Insulator: Polyamide 6
- Temperature Range: –45°C to +105°C
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Provides dust and liquid-tight connection to liquid-tight flexible metal conduit
- Body and cap made of brass with nickel plating for corrosion resistance
- Ferrule constructed from tin plated steel
- Inner seal and throat insulator made from durable Polyamide 6
- Temperature range from –45°C to +105°C suitable for various environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing.
Applications
- Indoor and outdoor wet corrosive environments
- Electrical conduit installations requiring dust and liquid-tight connections
- Use with liquid-tight flexible metal conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Nickel plating and corrosion resistance extend product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit Fitting Straight 3/8" Male Thread M16 is available for immediate purchase, ideal for electrical conduit installations in corrosive and wet environments.
