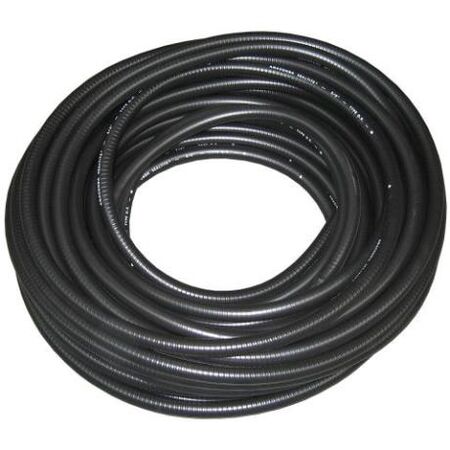

Flexible Metal Conduit High-Crush 16mm 30m Black Wattmaster
Wattmaster 16mm flexible galvanised steel conduit (30m length) features high crush resistance. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 16mm
- Length: 30m
- Temperature Range: –46°C to +105°C
- Core Material: Continuously interlocked hot dipped zinc galvanised steel
- Jacket Material: Sunlight resistant thermoplastic PVC
- Protection Rating: IP67 with approved connectors
- Resistance: Crush resistant, corrosion resistant, oil and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 2.5 kg
Key Features
- Provides cable protection in harsh environments
- Temperature Range: –46°C to +105°C
- Dust and liquid tight protection of cables
- Constructed of continuously interlocked hot dipped zinc galvanised steel core for exceptional crush and corrosion resistance
- Durable sunlight resistant thermoplastic PVC jacket resistant to heat, oil, and chemical breakdown
- Uses standard liquid-tight fittings for easy installation
- Smooth appearing cover with convenient markings in feet
- Waterproof flexible duct for electric cables
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Protection of electrical cables in harsh industrial environments
- Outdoor and indoor cable routing requiring liquid and dust tight protection
- Use in areas exposed to sunlight, oil, chemicals, and mechanical stress
- Suitable for electrical installations requiring flexible, crush-resistant conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Corrosion resistance extends product life, reducing environmental impact
- Protects cables from damage, preventing electrical faults and associated hazards
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects for 1 year.
Available Now
The Wattmaster Flexible Metal Conduit High Crush Resistance Anaconda HCB Liquidtight 16mm 30m is available for immediate purchase, ideal for industrial and commercial electrical cable protection applications.
