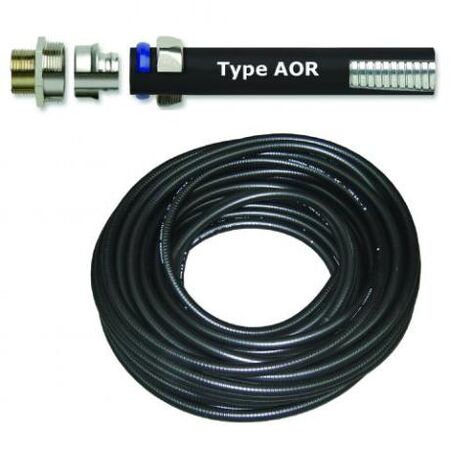

Flexible Metal Conduit Oil Resistant 16mm 30m Black Wattmaster
Wattmaster 16mm flexible galvanised steel conduit (30m length) features oil resistance. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 16mm
- Length: 30m
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- Material: Continuously interlocked galvanised steel core with cord packing
- Cover: Black thermoplastic PVC, oil and sunlight resistant
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Compatible with standard liquid-tight fittings
- Dimensions (H x L x W): 16mm x 30000mm x 16mm
- Weight: 2.5 kg
Key Features
- Provides cable protection in oil rich environments
- Temperature Range: -15°C to +100°C (Up to +120°C intermittent)
- Heavy duty and oil resistant protection of cables
- Continuously interlocked galvanised steel core with cord packing
- Durable, sunlight resistant, black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover for exposed applications with convenient markings in feet
- No copper ground wire
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial environments with oil exposure
- Electrical cable protection in machinery and equipment
- Outdoor and indoor installations requiring liquid-tight conduit
- Automotive and manufacturing plants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial and commercial electrical installations requiring oil resistant and liquid-tight conduit protection.
