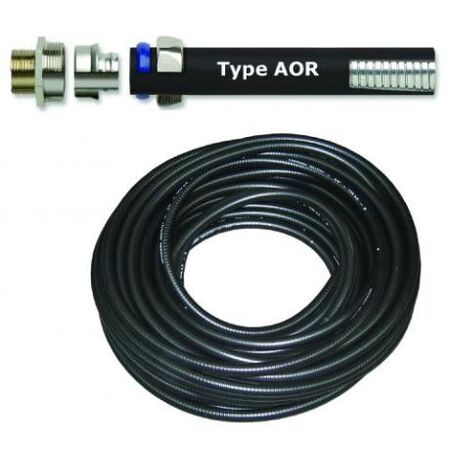

Flexible Metal Conduit Oil Resistant 63mm 15m Black Wattmaster
Wattmaster 63mm flexible galvanised steel conduit (15m length) features oil resistance. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 63mm
- Length: 15m
- Temperature Range: -15°C to +100°C (up to +120°C intermittent)
- Core: Continuously interlocked galvanized steel with cord packing
- Cover: Black thermoplastic PVC, sunlight resistant
- IP Rating: IP67 with approved connectors
- No copper ground wire included
- Dimensions (H x L x W): 630mm x 15000mm x 630mm
- Weight: 4.5 kg
Key Features
- Provides cable protection in oil-rich environments
- Temperature range from -15°C to +100°C, up to +120°C intermittent
- Continuously interlocked galvanized steel core with cord packing
- Durable, sunlight resistant black thermoplastic PVC cover
- Thermoplastic PVC cover highly resistant to petroleum and most synthetic oils
- Smooth appearing cover with convenient markings in feet
- No copper ground wire
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sealing for IP67 rating.
Applications
- Industrial cable protection in oil-rich environments
- Heavy-duty electrical installations requiring liquid-tight conduit
- Outdoor and indoor installations exposed to sunlight and petroleum products
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Resistant to petroleum and synthetic oils, preventing environmental contamination from damaged cables
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial and commercial electrical installations requiring oil-resistant, liquid-tight conduit protection.
