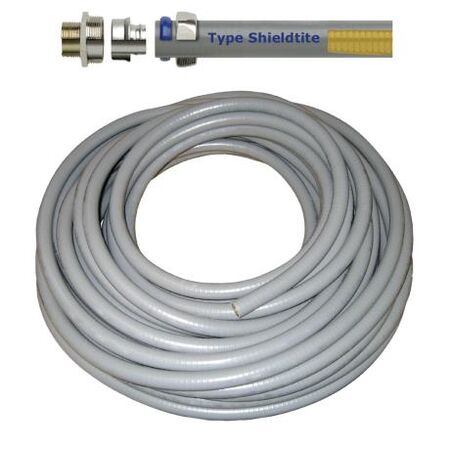

Flexible Metal Conduit Shieldtite EMC 10mm 30m Grey Wattmaster
Wattmaster 10mm flexible galvanised steel conduit (30m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Size: 3/8 inch (16mm nominal)
- Length: 30 meters
- Core Material: Continuously interlocked high shielding bronze core
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Resistance: Sunlight, heat, oil, chemical degradation, abrasion, flame retardant
- Dimensions (H x L x W): 10mm x 30000mm x 10mm
- Weight: 2.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible conduit with continuously interlocked high shielding bronze core
- Durable, abrasion resistant, flame retardant, and sunlight resistant
- Meets Mil–STD–1310D for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper shielding and compliance with electrical standards.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or indoor wiring installations requiring high flexibility and durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Flame retardant and chemical resistant materials enhance safety and reduce environmental hazards
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit 3/8" Shieldtite® EMC 30m is available for immediate purchase, ideal for industrial and commercial electrical wiring applications requiring high EMI protection.
