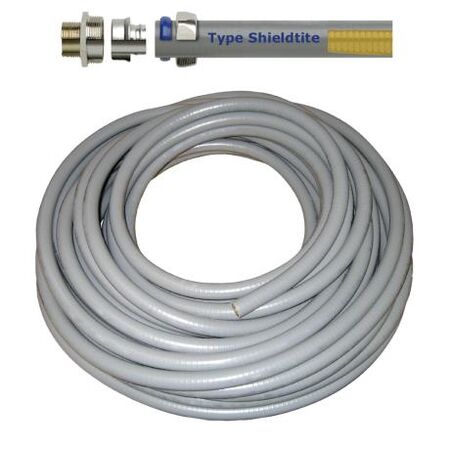

Flexible Metal Conduit Shieldtite EMC 32mm 30m Grey Wattmaster
Wattmaster 32mm flexible galvanised steel conduit (30m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Diameter: 32mm
- Length: 30 meters
- Core Material: Continuously interlocked bronze for high shielding effectiveness
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Resistance: Flame retardant, abrasion resistant, sunlight resistant, heat, oil, and chemical resistant
- Installation: Compatible with standard liquid-tight fittings
- Dimensions (H x L x W): 32mm x 30000mm x 32mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover that is abrasion resistant, flame retardant, and sunlight resistant
- Extra flexible wiring conduit with a special continuously interlocked bronze core
- Meets Mil–STD–1310D for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper shielding performance.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed applications requiring durable and flexible conduit
- Suitable for environments with exposure to sunlight, heat, oil, and chemicals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant and sunlight resistant properties enhance longevity in outdoor applications
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Flexible Metal Conduit 1" Shieldtite® EMC 30m is available for immediate purchase, ideal for industrial and commercial electrical wiring applications requiring high-level EMI shielding.
