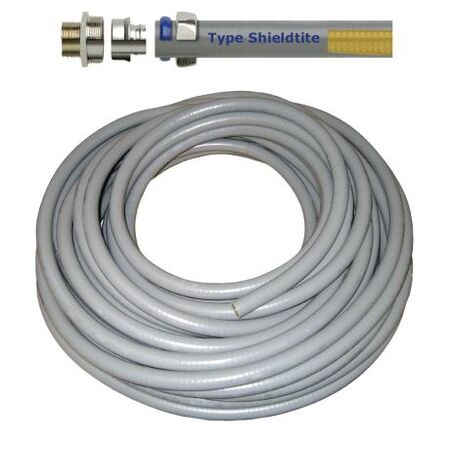

Flexible Metal Conduit Shieldtite EMC 40mm 1-1 4" 15m Grey Wattmaster
Wattmaster 40mm flexible galvanised steel conduit (15m length) features interlocked flexible construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conduit Diameter: 1-1/4 inch (40mm)
- Length: 15 meters
- Core Material: Continuously interlocked high shielding bronze
- Cover Material: Smooth grey thermoplastic PVC
- Shielding Effectiveness: 81 – 119 dB at 1 MHz to 1 GHz
- Standards Compliance: Meets Mil–STD–1310D for EMI and EMP shielding
- Cover Properties: Abrasion resistant, flame retardant, sunlight resistant, oil and chemical resistant
- Installation: Uses standard liquid-tight fittings
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 3.5 kg
Key Features
- Provides cable protection with high-level electromagnetic shielding
- Smooth grey thermoplastic PVC cover resistant to sunlight, heat, oil, and chemicals
- Extra flexible conduit with continuously interlocked high shielding bronze core
- Meets Mil–STD–1310D for EMI and EMP shielding
- Shielding effectiveness of 81 – 119 dB from 1 MHz to 1 GHz
- Uses standard liquid-tight fittings for easy installation
- Durable, abrasion resistant, flame retardant cover with convenient markings in feet
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper EMI shielding.
Applications
- Electrical wiring protection in commercial and industrial buildings
- Shielding cables from electromagnetic interference (EMI) and electromagnetic pulses (EMP)
- Use in exposed or concealed conduit installations requiring high flexibility and durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Flame retardant and chemical resistant properties enhance safety and longevity
- Supports energy efficiency by protecting sensitive cables from electromagnetic interference
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Flexible Metal Conduit 1-1/4" Shieldtite® EMC 15m is available for immediate purchase, ideal for industrial and commercial electrical wiring applications requiring high-level EMI protection.
