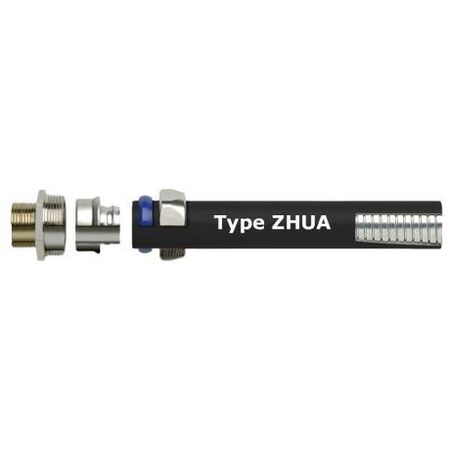

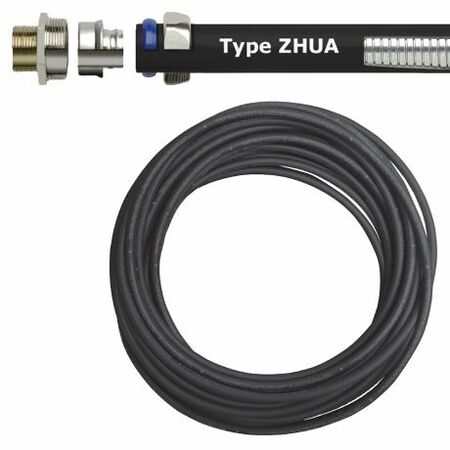

Flexible Metal Conduit Zero Halogen 40mm 15m Black Wattmaster
Wattmaster 40mm flexible galvanised steel conduit (15m length) features zero halogen construction. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 40mm
- Length: 15 meters
- Core: Continuously interlocked hot dipped zinc galvanized steel
- Jacket: TPU, flame retardant, sunlight resistant, low smoke, zero halogen
- Protection: Dust and liquid tight
- Temperature rating: Suitable for extreme temperature applications
- IP Rating: IP67 with approved connectors
- Compliance: UL Standard 360 File No. E18917
- Dimensions (H x L x W): 40mm x 15000mm x 40mm
- Weight: 3.5 kg
Key Features
- Provides cable protection for restricted or self-contained ventilation areas
- Complies with UL Standard 360 File No. E18917
- Dust and liquid tight protection with zero halogen, low smoke conduit
- Constructed of continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance
- Durable, sunlight resistant, flame retardant, low smoke and zero halogen TPU jacket resistant to heat, oil and chemical breakdown
- Designed for extreme temperature applications
- Meets demands of higher temperature rated conductors
- Approved for both exposed and concealed locations
- Approved for direct burial
- IP67 rating when installed with approved connectors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and proper sealing for IP67 rating.
Applications
- Cable protection in restricted or self-contained ventilation areas
- Suitable for exposed and concealed electrical installations
- Direct burial applications
- Environments requiring zero halogen and low smoke emissions
- Industrial and commercial electrical conduit installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zero halogen and low smoke emissions reduce toxic gas release during fire, enhancing safety and environmental protection
- Durable materials extend product life reducing waste
- Corrosion resistance reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial, commercial, and residential electrical conduit applications requiring high safety and durability.
