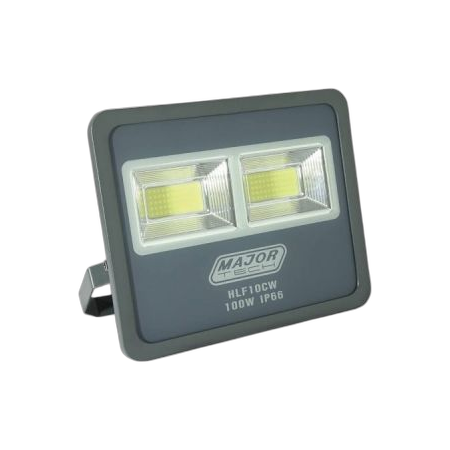

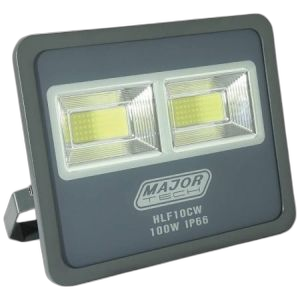

Floodlight LED 100W 12000lm 6000K MajorTech

BRAND: Major Tech
SKU: HLF10CW
$186.50 List price: $248.70
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED floodlight features 100W output, 12000lm and 6000K daylight colour. Ideal for outdoor area and security lighting.

Alternatively Known As: Major Tech HLF10CW Heavy-Duty LED Floodlight, 100W Outdoor LED Floodlight, IP66 LED Security Floodlight

Technical Specifications
  • Model: HLF10CW
  • LED Power: 100W
  • Luminous Output: 12,000lm
  • Luminous Efficacy: 120lm/W
  • Colour Temperature: 6000K cool white
  • LED Type: SMD 3518
  • Input Voltage: 85–265V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.95
  • Colour Rendering Index: >70 Ra
  • Beam Angle: 120°
  • Ingress Protection: IP66 housing; IP67 isolated driver
  • Impact Resistance: IK08
  • Surge Protection: 6kV
  • Rated Life: 50,000 hours
  • Installation Height: 5–8m
  • Operating Temperature: -25°C to 50°C
  • Cable Length: 500mm
  • Material: Heavy-duty rust-resistant aluminium frame
  • Approvals: C-Tick, SAA, RCM and LOA
  • Dimensions (H x L x W): 288mm x 243mm x 60mm
  • Weight: 2.3 kg
Key Features
  • High-output 100W LED floodlight producing 12,000 lumens
  • Wide 120° beam angle for broad area coverage
  • IP66-rated housing for dust and water protection
  • IP67 fully isolated driver
  • IK08 impact-resistant construction
  • Built-in 6kV surge protection
  • High power factor above 0.95
  • Multiple 50W LED modules for light distribution and service life
  • Rust-resistant heavy-duty aluminium frame
  • Suitable for mounting at 5–8m installation heights
Professional Installation Requirements
  • Mains-powered installation should be carried out by a suitably qualified electrician in accordance with applicable Australian electrical requirements and manufacturer instructions.
Applications
  • Outdoor area lighting
  • Security and perimeter lighting
  • Warehouses and industrial facilities
  • Agricultural holdings and farm buildings
  • Car parks and access areas
  • Sports grounds and recreational facilities
  • Mining and other demanding commercial environments
Standards & Compliance
  • AS/NZS 60598.1: Luminaires – General requirements and tests
  • AS/NZS 60598.2.5:2018: Luminaires – Particular requirements for floodlights
Environmental Benefits
  • 120lm/W efficacy can reduce energy consumption compared with lower-efficiency conventional floodlights
  • 50,000-hour rated life can reduce replacement frequency and associated material waste
  • Aluminium housing is recyclable at end of product life
  • LED technology avoids the routine lamp replacement associated with many traditional floodlight types
Warranty Information

Limited 5-year manufacturer warranty, subject to MajorTech warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian electrical and lighting distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
