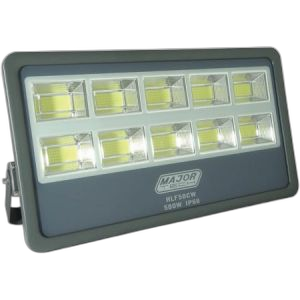

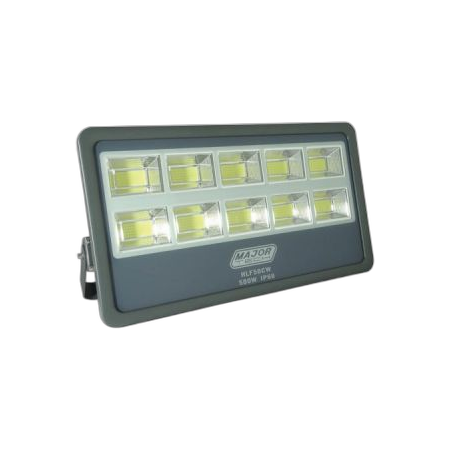

Floodlight LED 500W 60000lm 6000K MajorTech
MajorTech LED floodlight features 500W output, 60000lm and 6000K daylight colour. Ideal for outdoor area and security lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech HLF50CW High-Power LED Floodlight, Heavy-Duty LED Floodlight, Outdoor Area Floodlight
Technical Specifications
- Power: 500W
- Luminous Output: 60,000 lm
- Colour Temperature: 6500K cool white
- LED Type: SMD 3518
- Voltage: 85–265V AC
- Frequency: 50/60Hz
- Power Factor: >0.95
- Colour Rendering Index: >70 Ra
- Beam Angle: 120°
- Rated Life: 50,000 hours
- Housing Rating: IP66
- Driver Rating: IP67
- Impact Rating: IK08
- Surge Protection: 6kV
- Installation Height: 5–8m
- Cable Length: 500mm
- Operating Temperature: -25°C to 50°C
- Material: Heavy-duty rust-resistant aluminium frame
- Approvals: C-Tick, SAA, RCM and LOA
- Dimensions (H x L x W): 95mm x 690mm x 378mm
- Weight: 11.6 kg
Key Features
- High-output 500W LED floodlight producing up to 60,000 lumens
- 6500K cool-white daylight illumination for large outdoor areas
- Multiple 50W LED modules for broad light distribution
- IP66-rated housing and IP67-rated isolated driver
- IK08 impact resistance for demanding commercial and industrial environments
- 6kV surge protection for improved electrical protection
- 120° beam angle for area, security and sports lighting
- Heavy-duty aluminium frame with rust-resistant construction
- Suitable for warehouses, agricultural sites, parking areas and sports grounds
Professional Installation Requirements
- Installation, mounting and mains connection should be performed by a licensed electrician in accordance with applicable Australian wiring requirements, including AS/NZS 3000. Ensure the mounting structure is suitable for the floodlight's size and weight.
Applications
- Outdoor area lighting
- Security and perimeter lighting
- Warehouse and industrial lighting
- Agricultural and farm lighting
- Car park and access-road lighting
- Sports ground and recreational facility lighting
- Mining and other demanding commercial environments
Standards & Compliance
- AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
- AS/NZS 60598.2.5:2018 – Particular requirements for floodlights
- RCM, SAA and LOA approvals stated by the manufacturer
Environmental Benefits
- LED technology provides high light output with lower energy use than equivalent conventional high-output lighting
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Aluminium frame is recyclable at end of service life
- High power factor of greater than 0.95 supports efficient electrical operation
Warranty Information
Five-year limited warranty for MajorTech HLF floodlights, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
