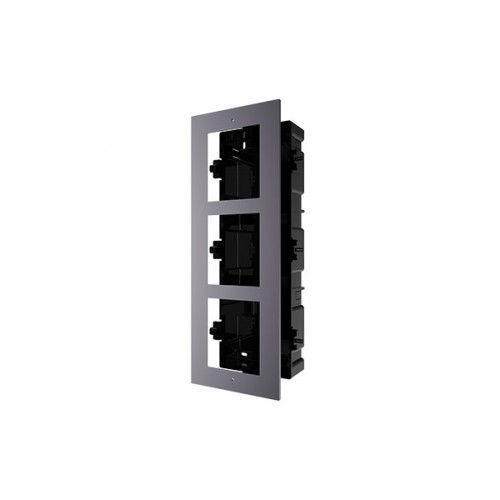

Flush Mount Housing 3 Module to Suit Intercom Hikvision
Hikvision flush mount housing holds 3 modules of a modular door station. Ideal for video intercom installs in flush wall fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 3-Module Flush Mount Frame, Hikvision Modular Intercom Flush Mount Bracket, DS-KD-ACF3/Plastic
Technical Specifications
- Model: DS-KD-ACF3
- Module Capacity: Up to 3 Hikvision modular door station modules
- Compatibility: Hikvision second-generation modular IP video intercom systems
- Installation Type: Flush-mounted
- Cover Material: Aviation aluminium alloy
- Gang Box Material: Plastic
- Operating Temperature: -40°C to +60°C
- Working Humidity: 10% to 95% non-condensing
- Recommended Wall Cut-out: Approximately 323 mm × 111 mm × 33 mm
- Cover Dimensions: Approximately 337.8 mm × 124 mm × 4 mm
- Gang Box Dimensions: Approximately 338.8 mm × 134 mm × 56 mm
- Dimensions (H x L x W): 339mm x 134mm x 56mm
- Weight: 0.42 kg
Key Features
- Accommodates up to three Hikvision modular intercom modules
- Provides a concealed flush-wall installation for modular door stations
- Includes front cover, flush-mount gang box and mounting hardware
- Aluminium cover provides a rigid and durable mounting surface
- Suitable for residential, multi-residential, commercial and controlled-access entry installations
- Designed for use with compatible Hikvision KD Series intercom modules
Professional Installation Requirements
- Installation requires wall cutting, secure fixing and intercom wiring. Work should be completed by a suitably qualified security or electrical installer in accordance with the relevant installation instructions and local requirements.
Applications
- Flush-mounted video intercom door stations
- Apartment and multi-residential entry systems
- Commercial building access points
- Office and institutional entrance installations
- Expansion or replacement of compatible Hikvision modular intercom systems
Environmental Benefits
- Aluminium components are durable and recyclable at end of service life
- Modular construction allows individual intercom modules to be replaced or upgraded without replacing the complete housing
- Durable materials can extend installation service life and reduce replacement waste
Warranty Information
Warranty is subject to Hikvision Australia’s applicable product warranty and authorised-distributor terms. Retain the original purchase documentation for warranty assessment; Hikvision’s Australian RMA policy requires valid proof of purchase and applies only within the applicable warranty period.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
