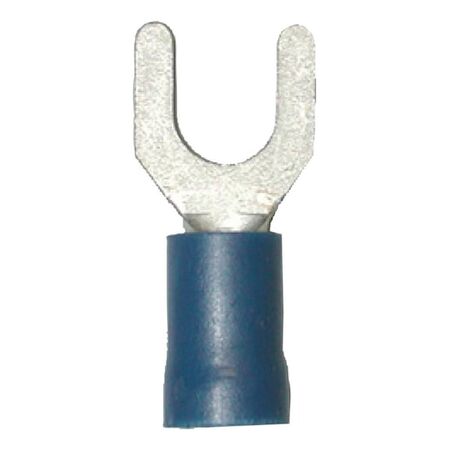

Fork Terminal 1.02-2.63sqmm M4 Insulated Blue Pack of 25 Wurth

BRAND: Wurth
SKU: 5589532
$11.40 List price: $14.40
25 PCS ($0.46 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Wurth insulated fork spade crimp terminal, 1.02-2.63sqmm cable, blue. 600V rated. Pack of 25.
Technical Specifications
  • Min./max. wire cross section: 1.02-2.63 mm²
  • Colour: Blue
  • Flange hole: M4
  • Length: 22 mm
  • Max. nominal voltage: 600 V/AC
  • Max. temperature conditions: 105 °C
  • Material: Copper
  • Insulating material: Nylon
  • Halogen-free: Yes
  • Silicone-free: Yes
  • Dimensions (H x L x W): 5mm x 22mm x 10mm
  • Weight: 0.01 kg
Key Features
  • Expanded insulating sleeve for enhanced protection
  • Harmonised conductors with stronger cable core insulation
  • Easy, fast, and safe insertion of the conductor with "Easy Entry" design
  • High-quality polyamide (nylon) insulation
  • Suitable for use in situations involving changing loads and temperature fluctuations
  • Fork shape in accordance with DIN 46237/C
  • Halogen-free and silicone-free materials
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
  • Electrical wiring and connections in industrial and residential settings
  • Suitable for use in environments with changing loads and temperature fluctuations
  • Ideal for secure and reliable conductor connections in control panels and machinery
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free and silicone-free materials reduce environmental impact
  • Durable polyamide insulation extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.

Available Now

Wurth Crimp Cable Lug Fork Shape Polyamide Insulated Blue M4 25 PCS is available now for immediate purchase. Ideal for electrical wiring and connection applications requiring reliable and safe conductor termination.
